2006-2010 OK1TEH JO70FD 10 GHz log -

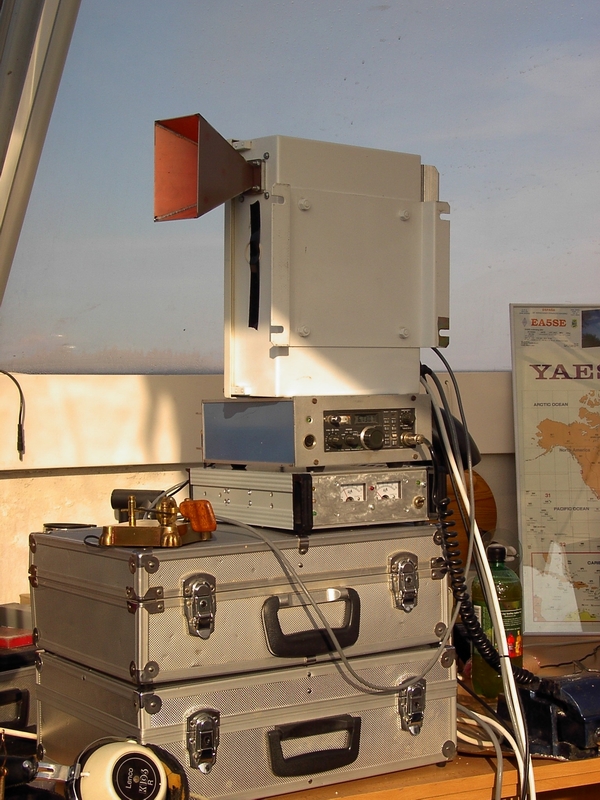

15dB HORN (measured 3W on waveguide output) + 6W PA + transvertor DB6NT + FT290R .

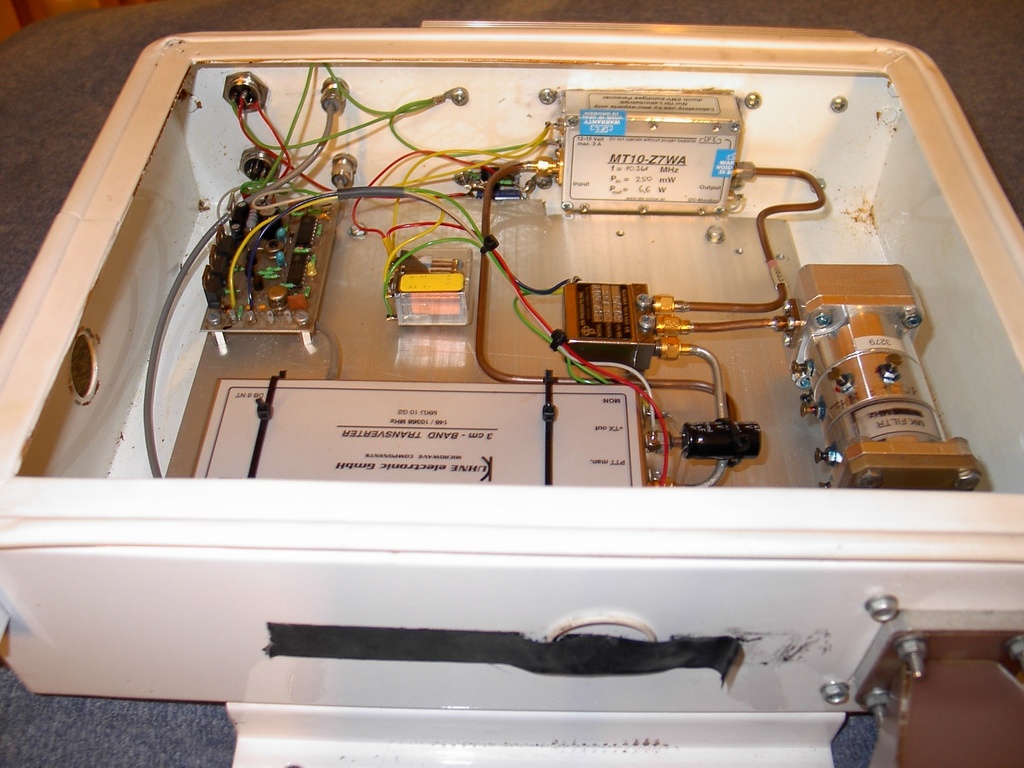

DB6NT transvertor 2m/3cm (200mW out) with 6W PA

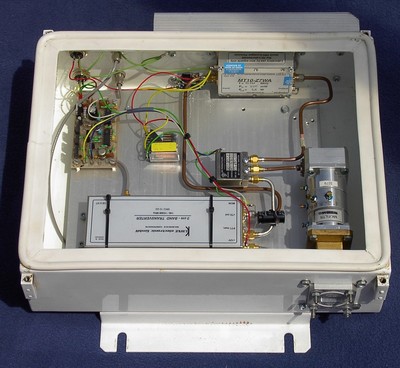

Detailed picture of 6W PA from DK2FD, 3W at antenna from waveguide

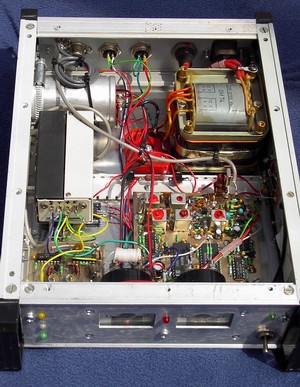

Oscillator with 10 MHz OCXO (by OK1VPZ)
More in Czech version at:
http://www.ok2kkw.com/mw2004.htm
http://www.ok2kkw.com/00003016/pll_10ghz/frekvencni_synteza.htm
http://www.ok2kkw.com/00003016/pll/pll_lo.htm
http://www.ok2kkw.com/00003016/sequencer/sequencer.htm

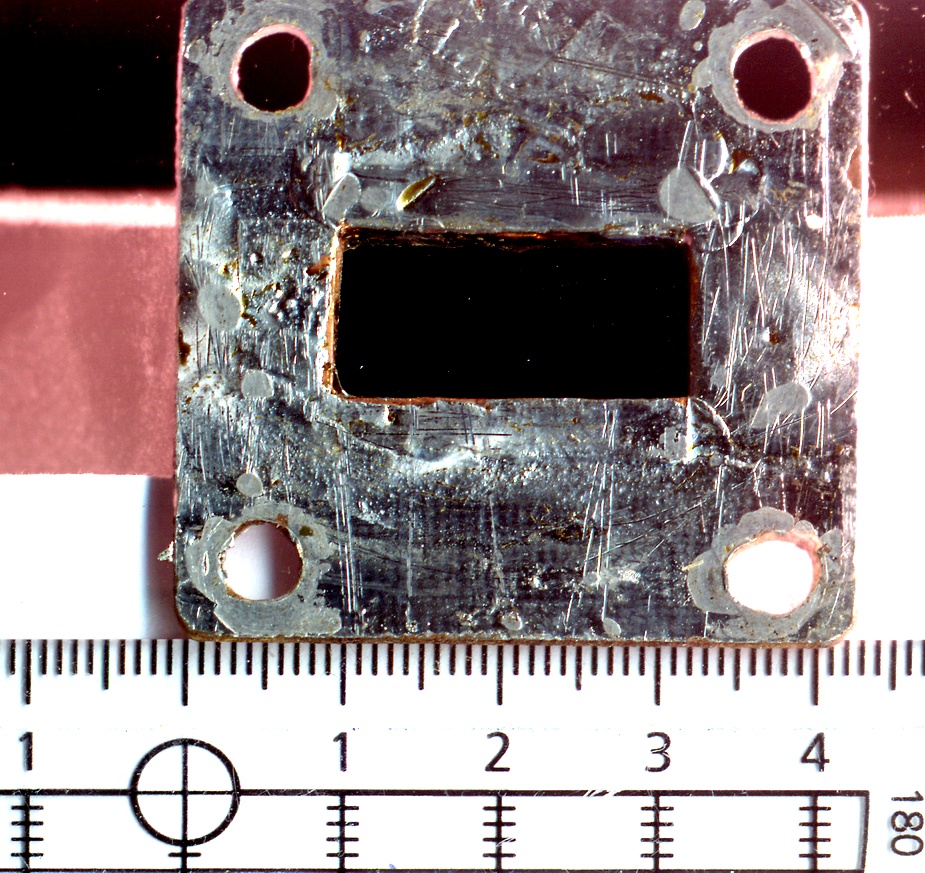

Some facts about my horn antenna
Gain of HORN antenna for 3cm (source http://www.ok2kkw.com/00003016/3cm/horn.gif)
|
Gain (dBd) |
A side (mm) |
B side (mm) |
Length (mm) |
High HA (mm) |
High HB (mm) |
alfa (°) |
beta (°) |
K side (mm) |
| 14 | 68,2 | 50,5 | 26,2 | 33,1 | 34,6 | 55,6 | 59,8 | 40,1 |
| 15 | 76,5 | 56,7 | 36,5 | 43,4 | 45,3 | 58,2 | 62,8 | 50,9 |
| 16 | 85,8 | 63,6 | 49,6 | 56,5 | 58,9 | 60,9 | 65,6 | 64,7 |
| 17 | 96,3 | 71,3 | 66,7 | 73,4 | 76,1 | 63,4 | 68,1 | 82,1 |
| 18 | 108,1 | 80,0 | 88,5 | 95,1 | 98,2 | 65,9 | 70,4 | 104,2 |
| 19 | 121,2 | 89,8 | 116,2 | 122,8 | 126,2 | 68,2 | 72,5 | 132,3 |
| 20 | 136,0 | 100,8 | 151,6 | 158,2 | 161,8 | 70,3 | 74,4 | 168,0 |
| 21 | 152,6 | 113,1 | 196,6 | 203,2 | 207,0 | 72,3 | 76,0 | 213,3 |
| 22 | 171,3 | 126,9 | 253,7 | 260,3 | 264,3 | 74,1 | 77,5 | 270,7 |
| 23 | 192,2 | 144,3 | 326,2 | 333,0 | 337,0 | 75,7 | 78,7 | 343,6 |
| 24 | 215,6 | 159,7 | 418,1 | 424,7 | 429,1 | 77,2 | 80,1 | 435,5 |
| 25 | 241,9 | 179,2 | 535,5 | 541,1 | 545,6 | 78,6 | 81,2 | 552,1 |

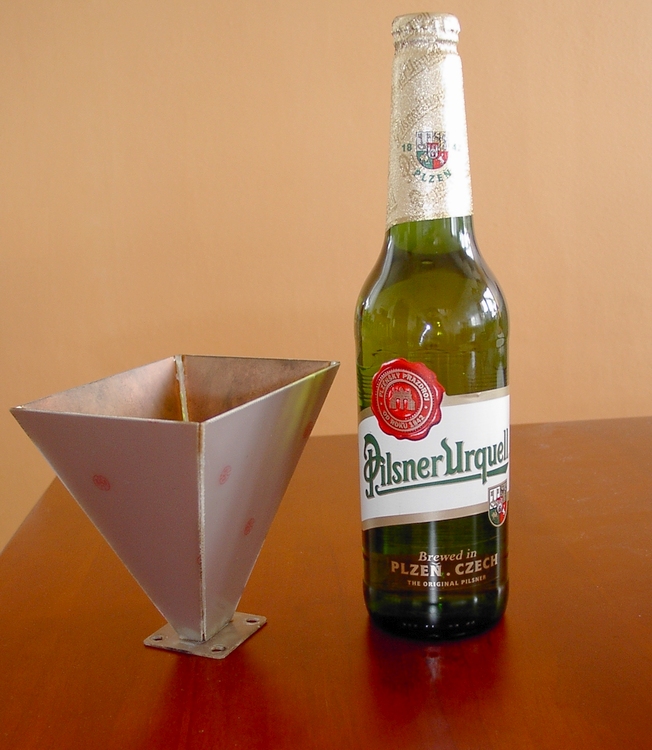

My 3cm HORN antenna is 11,1cm deep (calculated gain +-18,5dBd) but real gain is about 15dB due to not so precise construction..

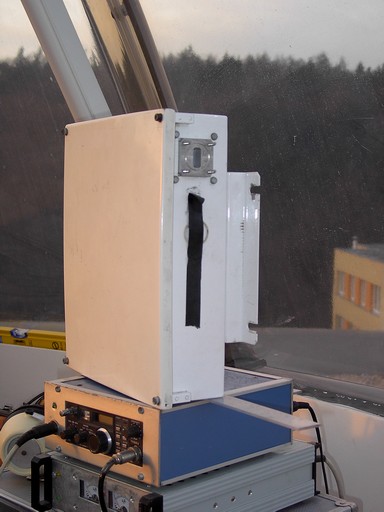

Some YO friend asked me about polarization.

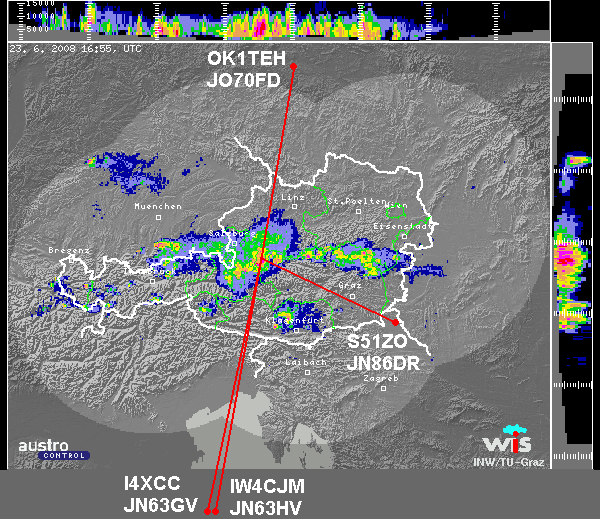

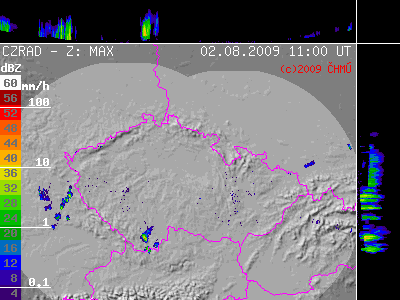

For new 3cm OK/OM hams: PSE read good article about rainscatter at http://www.ok2kkw.com/rs1999_jkt.htm

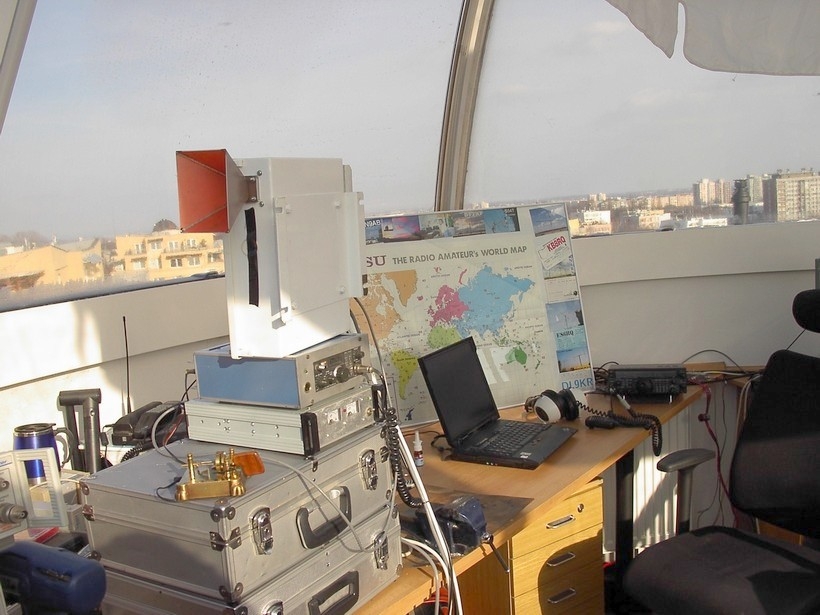

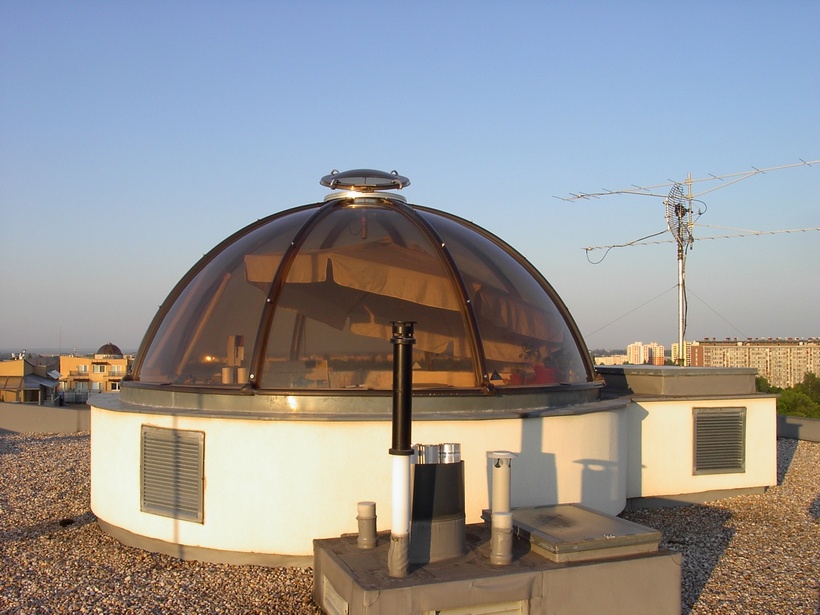

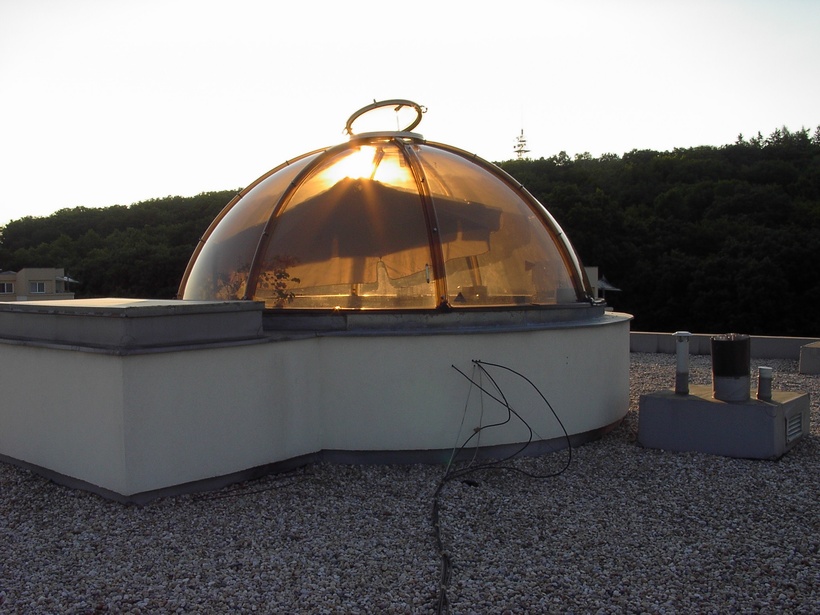

BTW I have shack in plastic cupola with minimal attenuation. If you want to try 3cm RS QSO from your room, don't forget to open window because of BIG ATTENUATION by glass!
more at http://ok1teh.nagano.cz/emepic/img_6224.jpg + http://ok1teh.nagano.cz/emepic/img_6225.jpg

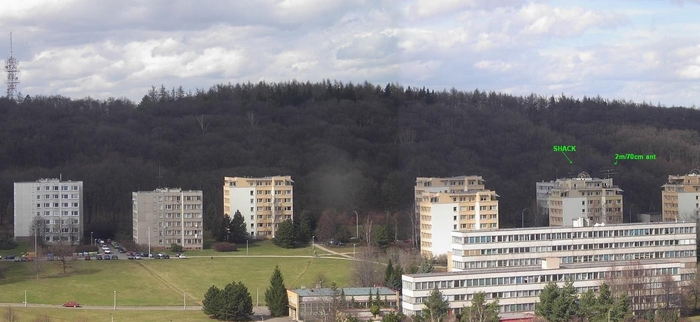

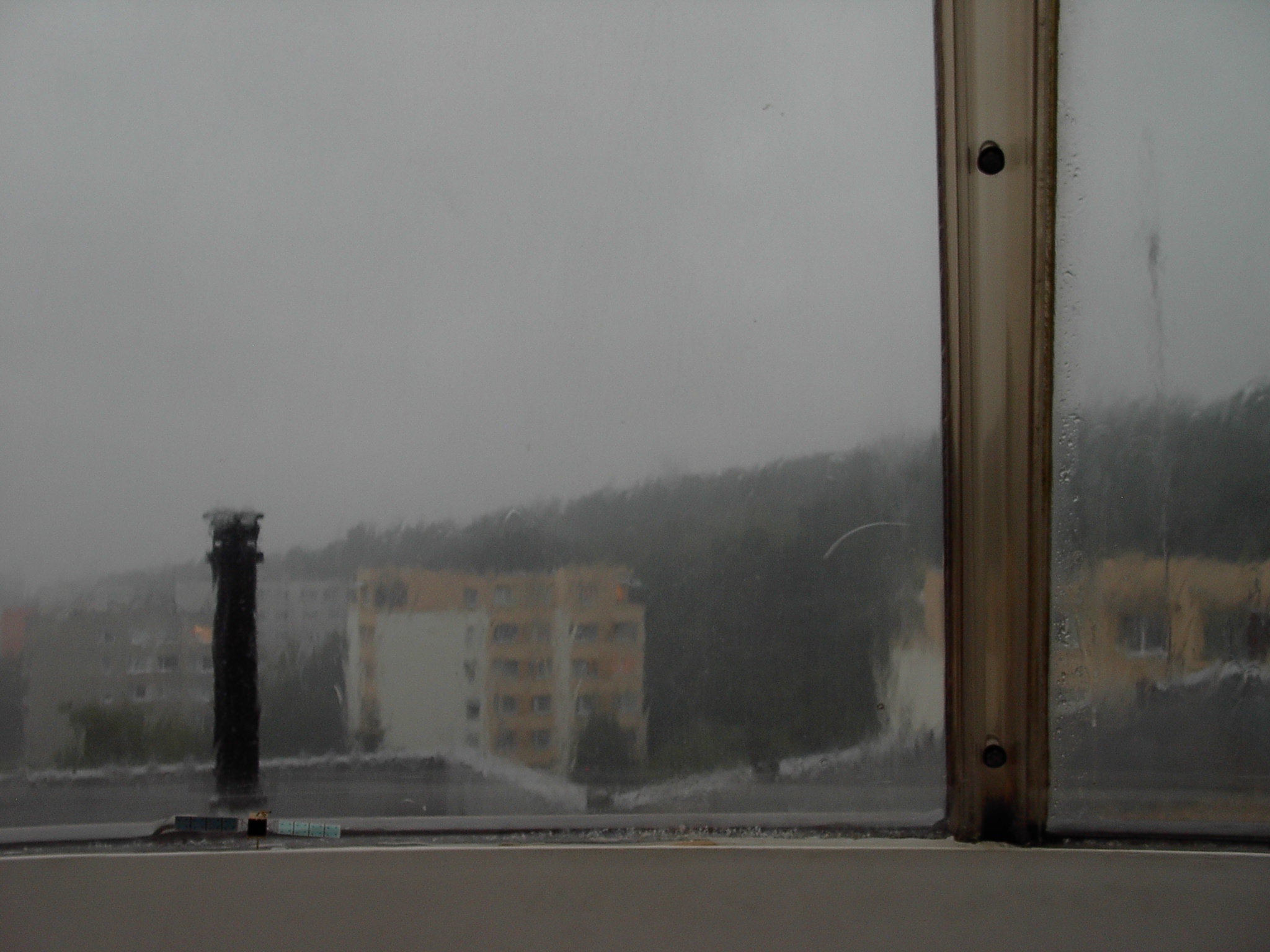

This is the view from near house QTF 0ş . Now you know, why i can't work DL1SUN, SM7ECM via RS in JO62 etc :-))
| Pretty
interesting map with marked precise range of the Rain Scatter-points in 8 &
12 000m ASL for OK1TEH's QTH in Prague. Note the yellow points which
are real scatter points used during my 3cm RS DX QSO abroad. Thank to map I
found that there are possibilities for 3cm RS QSO via SCP in central Poland
even with LY, UA2 and EW ;-) Just is a pity that map doesn't count with
trees and near houses. Map was used from http://www.heywhatsthat.com/main-0904.html |

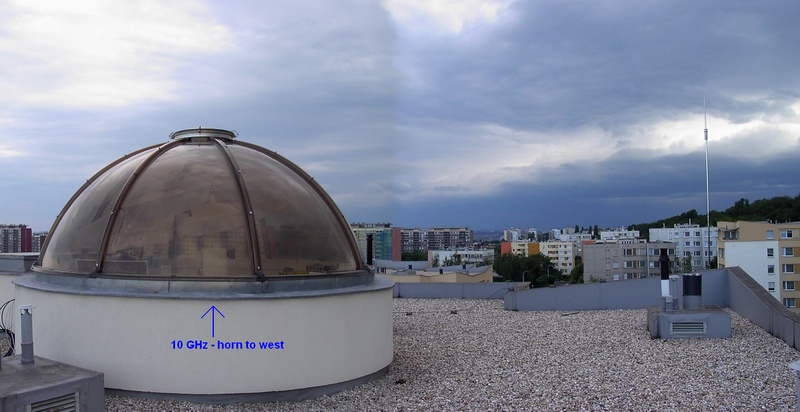

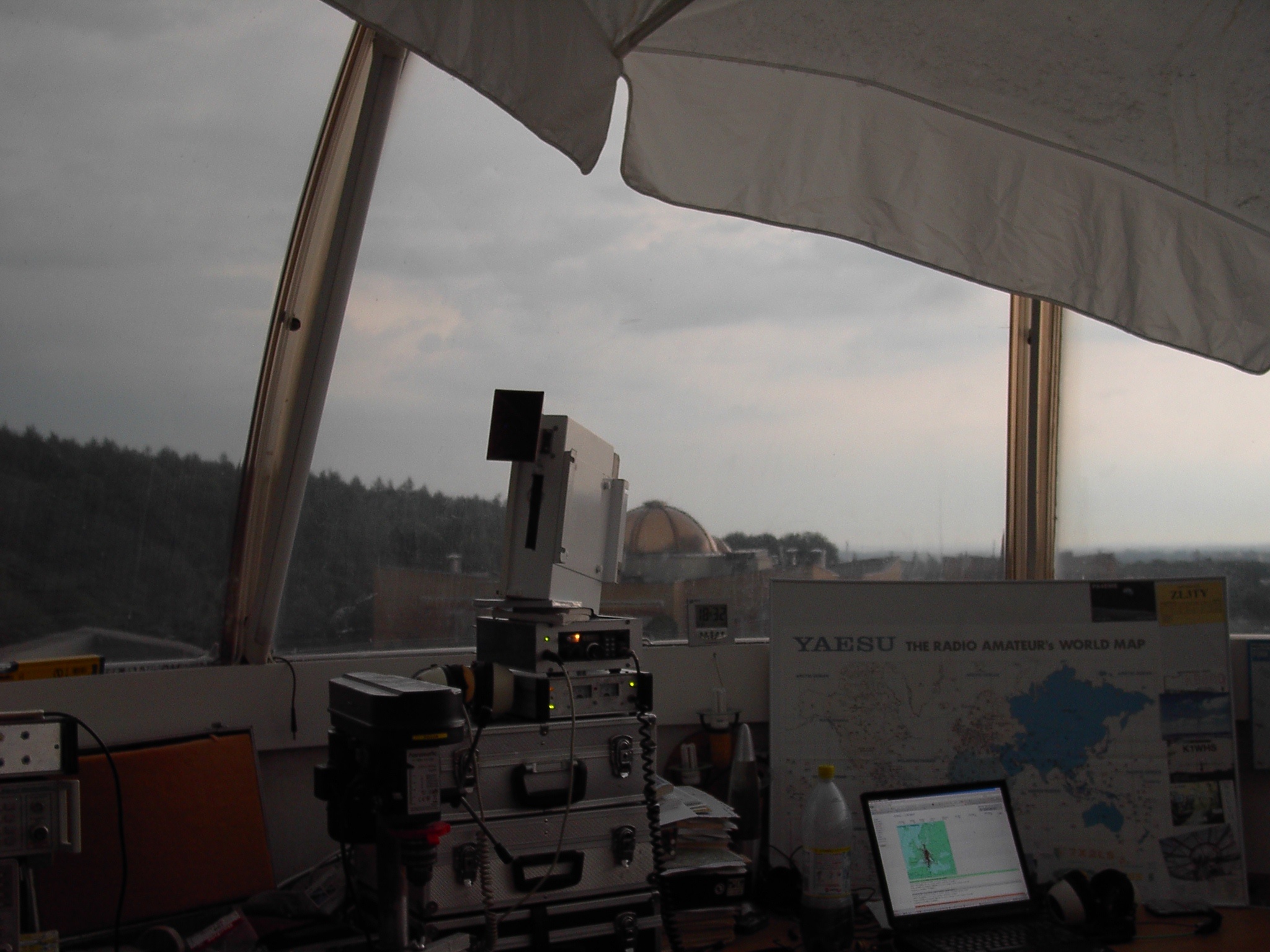

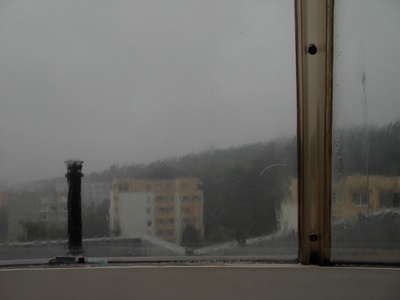

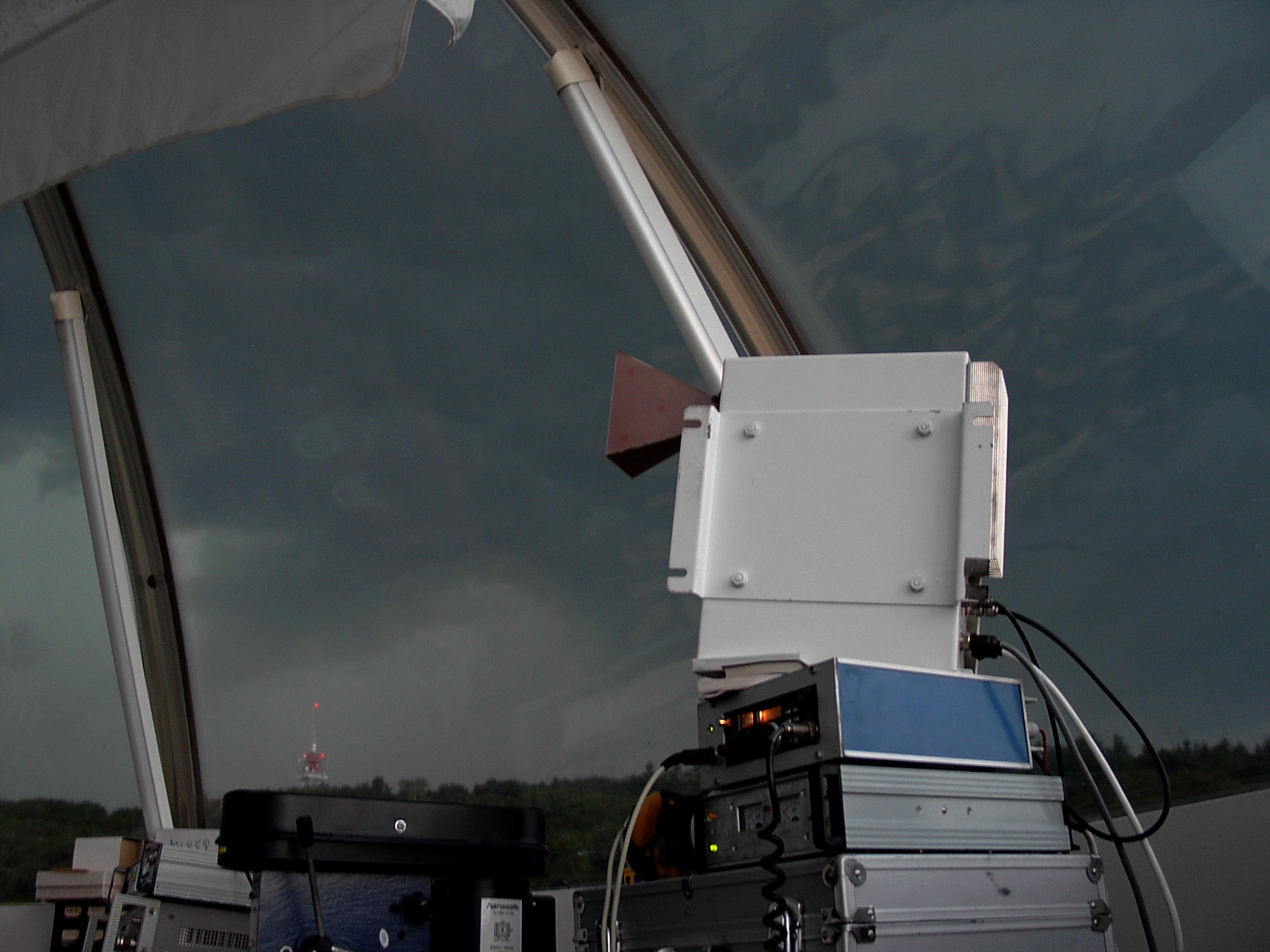

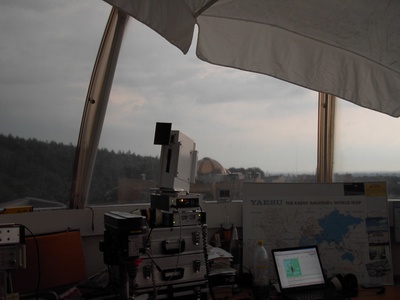

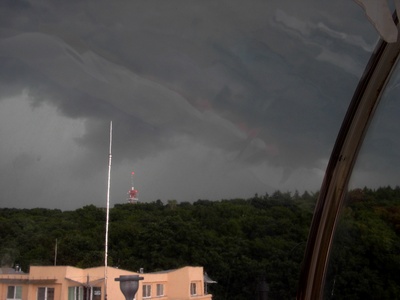

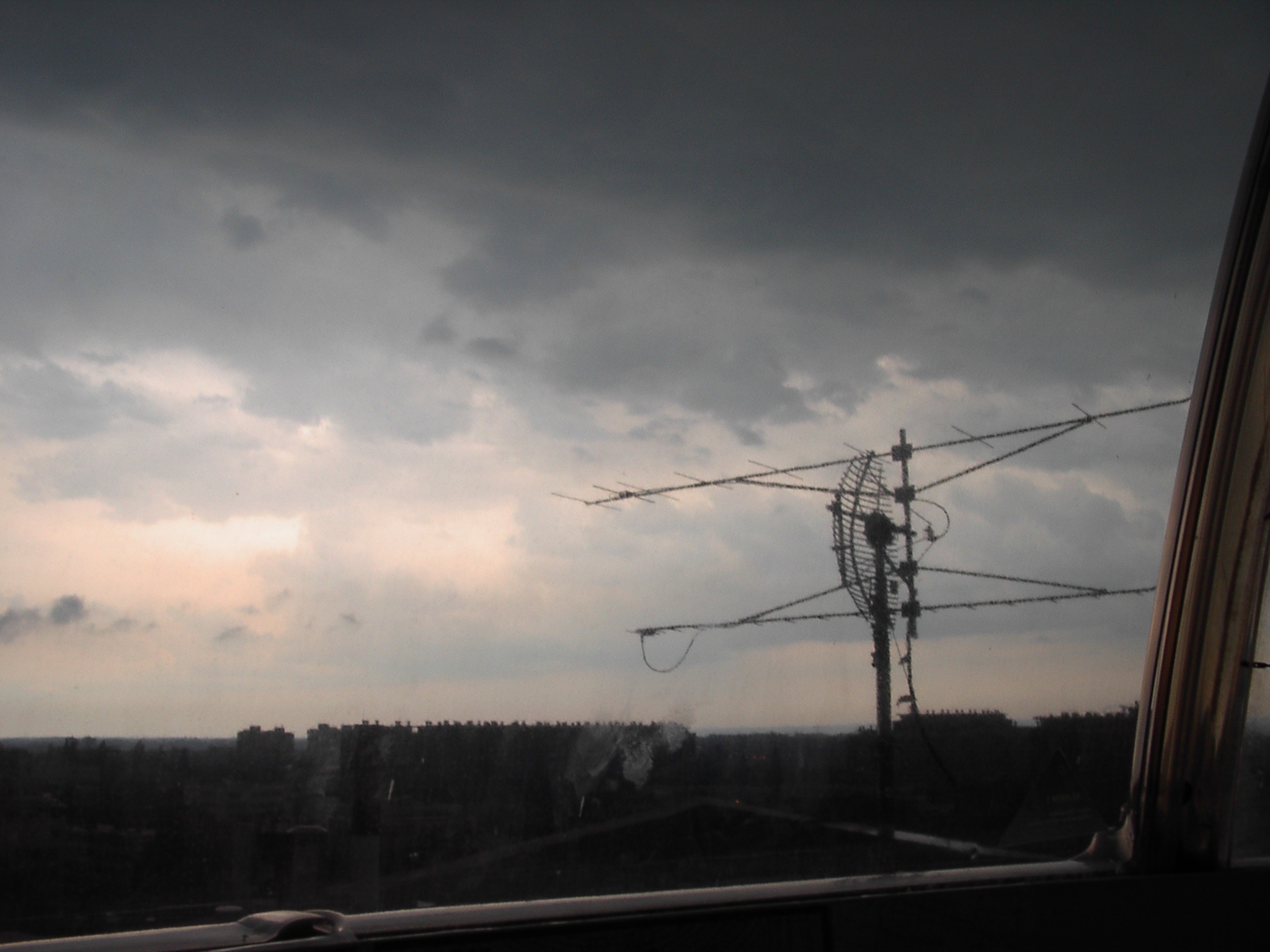

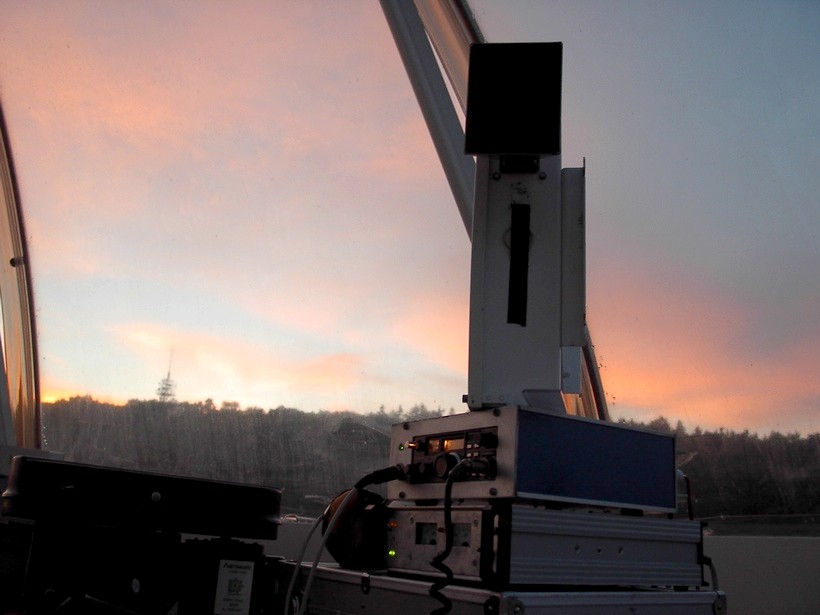

View before of upcoming storm with my horn ant in shack QTF 270º
For full view of horizont from my shack click here.
HRD Beacons on 10 GHz in JO70FD (on 15dB horn) source-> internet QRG Call Loc Asl km QTF EIRP/pwr last hrd ------------------------------------------------------------------ 10368.040 OK0EL JO70SQ 1035 98 135/270 0.35 22-05-2007 10368.050 OK0EA JO70UP 1355 105 180/270 0.5 07-08-2009 10368.811 DB0ANU JN59GG 1100 299 Omni 5 27-06-2006 10368.835 DB0FGB JO50WB 1100 185 Omni 13 22-05-2007 10368.855 SR0WCK JO90NS 282 339 Omni 4.5 22-05-2007 10368.873 OE5XBM JN78DJ 980 195 Omni 10 22-05-2007 10368.813 OK0EW JO60OK 875 95 Omni 1.5 W 27-06-2009 10368.895 SR6NCI JO80JG 1150 167 Omni 1 22-05-2007 10368.973 OE2XRO JN67LA 3105 365 Omni 13 22-05-2007
the TROPO/RS LOG of OK1TEH JO70FD 320m ASL - 2006 10GHz
DD/MM/YY UTC MHz CALL RST RCVD LOC km
-----------------------------------------------------------------
19.03.06 09:14 10368100 OK1ANV 59 001 59001 JO70GD 6 #1
19.03.06 09:21 10368100 OK1FBX 59 002 59001 JO60WD 42 #2
27.03.06 13:27 10368100 DL6NCI 579 529 JO50VI 192 #3 3rd DXCC TR ODX # #
27.03.06 18:14 10368105 DL6NCI 59S cw 53S JO50VI 192 QTF 240/132 qSl Sent # #
31.03.06 15:22 10368097 DL6NCI 529-57S 52S JO50VI 192 QTF 280
01.04.06 15:38 10368100 OE5VRL/5 599+52S 539 JN78DK 190 #4 10W 3m DISH 17m / ground # #
02.04.06 16:04 10368105 DL6NCI 59S 57S JO50VI 192 SSB
02.04.06 16:06 10368300 DL6NCI 59S 59S JO50VI 192 FM
14.04.06 14:36 10368101 OK1JKT/p 59+20 57-8 JO60RN 85
22.04.06 13:51 10368100 OK1VAM 59 59 JN79IX 26
22.04.06 14:51 10368100 OK1VAM 59S+60 59S JN79IX 26 #5

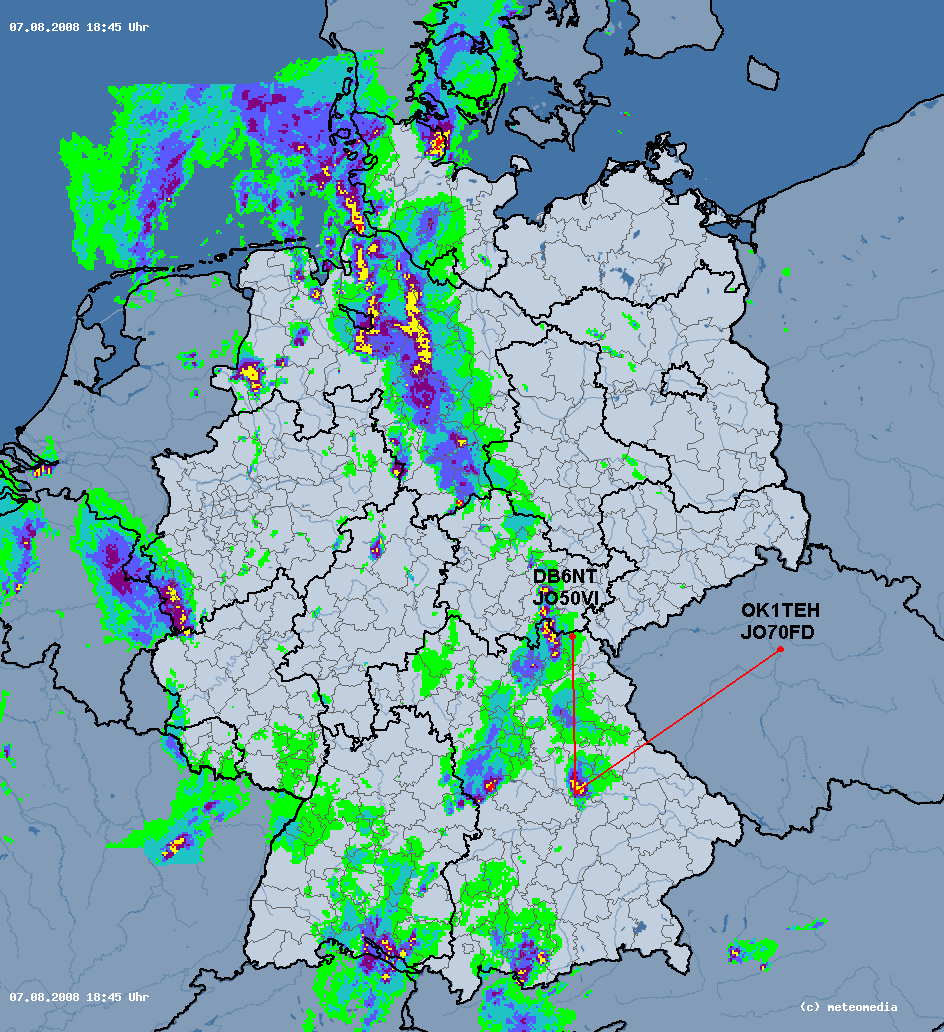

22.04.06 15:01 10368100 DB6NT 59S+20 59S JO50VJ 192
13.05.06 20:51 10368100 OK1JKT/p 579 549 JO60RN 85
13.05.06 20:55 10368100 OK1JKT/P 59+ 59+ JO60RN 85
16.05.06 13:00 10368100 OK1YA 59S+20 59S+20 JO70GC 8 QTF 20/13
21.05.06 08:19 10368100 OK2QI 59001 59001 JO80NC 191 #6
03.06.06 14:08 10368100 OK1KIK 59 001 59 003 JO70TQ 103
03.06.06 14:09 10368100 OK1YA 59 002 59 004 JO70GC 8
03.06.06 14:18 10368100 DM7A 59 003 59 005 JO60LK 112
03.06.06 14:21 10368100 OL4A 599004 599004 JO60RN 85
03.06.06 14:25 10368100 OK1VAM/P 59 005 59 013 JO60LJ 111
03.06.06 14:30 10368100 OK2PWY 599006 599004 JO80HB 155
03.06.06 14:34 10368100 OK1DST 59 007 59 007 JN79IX 26
03.06.06 15:28 10368100 OK1KKL 59 008 59 006 JO70PO 79
03.06.06 17:37 10368100 OK2QI 59 009 59 018 JO80NC 191
03.06.06 17:39 10368100 OK2TT 59 010 59 010 JO80IA 162
03.06.06 17:41 10368100 OK5Z 59 011 55 009 JN89AK 139 #7
03.06.06 17:58 10368100 OL3Z 59 012 59 013 JN79FX 19
03.06.06 18:22 10368100 OK1UEI 59 013 59 010 JO70SS 104
03.06.06 18:23 10368100 OK1VEI 59 014 59 013 JN79CX 26
03.06.06 18:42 10368100 OE5VRL/5 599015 529010 JN78DK 191
03.06.06 23:54 10368100 OL2R 599016 559033 JN89BO 134
04.06.06 00:18 10368100 OE5MKM 57S017 519015 JN67UT 266 #8
04.06.06 08:18 10368100 OK1UFL 59 018 59 009 JO70SQ 98
16.06.06 16:45 10368103 OK2ZZ 59S 55S JN89BO 134 QTF 180
16.06.06 16:50 10368107 DK5WMA 59S+ 59S JO60KT 135 QTF 180
16.06.06 16:55 10368108 OM3LQ 59S 57S JN88MK 267 #9 QTF 180 4th dxcc
16.06.06 17:04 10368103 OK2BPR 57S 55S JN99FU 289 #10 QTF 90
16.06.06 17:09 10368112 SP3JBI 59S 57S JO91BR 312 #11 QTF 20 5th dxcc # #
16.06.06 18:02 10368102 SP7VC 57S 55S JO91SS 400 QTF 60
16.06.06 18:19 10368108 SP9SOO 59S 58S JN99OV 345 QTF 90 SSB
16.06.06 18:32 10368109 OK2BFH 59S 55S JN99GU 295 QTF 70
16.06.06 18:57 10369113 DK5AI 59S 55S JO51GO 210 #12 QTF 262
16.06.06 19:04 10368102 DL1ATI 55S 51S JO50QU 233 QTF 262
16.06.06 19:22 10368100 DK2GR 59S 56S JN59IE 291 #13 QTF 262 1W 70cm dish SSB
16.06.06 19:32 10368100 DJ1KP 59S 55S JO40JJ 405 #14 QTF 260
18.06.06 11:50 10368100 OE5MKM 59 001 51006 JN67UT 266
18.06.06 11:57 10368102 OE3WOG/2 57 002 51007 JN67RS 275
18.06.06 12:34 10368120 OE5VRL/5 579003 559012 JN78DK 191

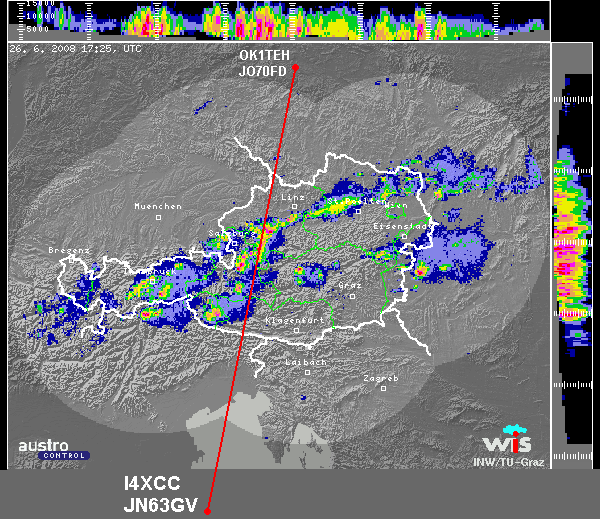

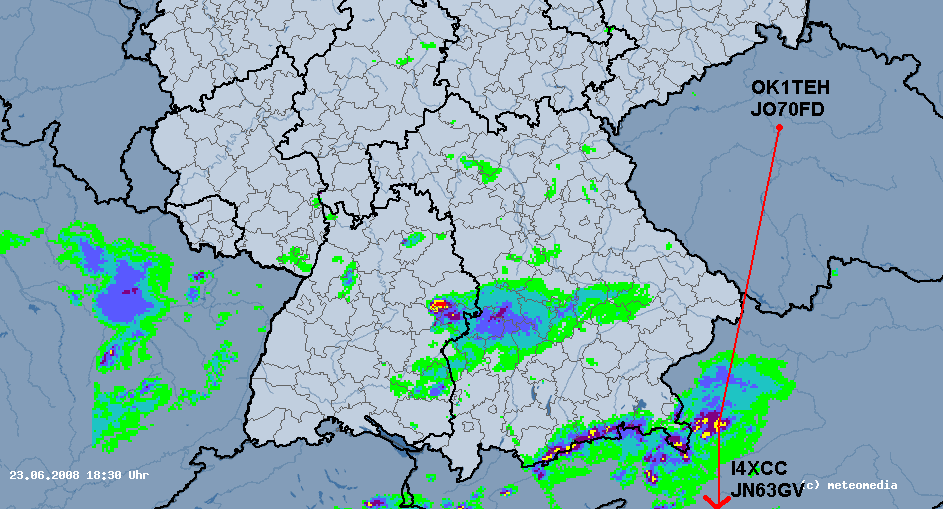

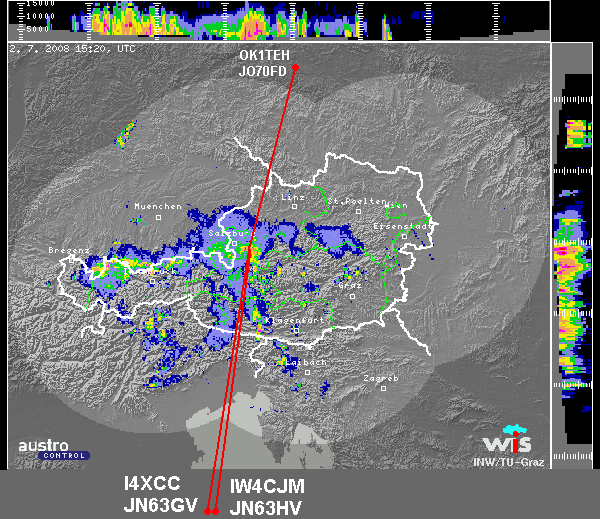

18.06.06 18:22 10368100 I4XCC 52S 51S JN63GV 710 #15 6th dxcc !! listen MP3 # # + QSL CARD
19.06.06 14:55 10368100 OK1JKT/P 59S+ 59S JO60RN 85 QTF 290
19.06.06 15:53 10368096 OK1VAM/P 59 59 JN79IX 26
19.06.06 17:13 10368100 OM3LQ 59S 55S JN88MK 267 QTF 270

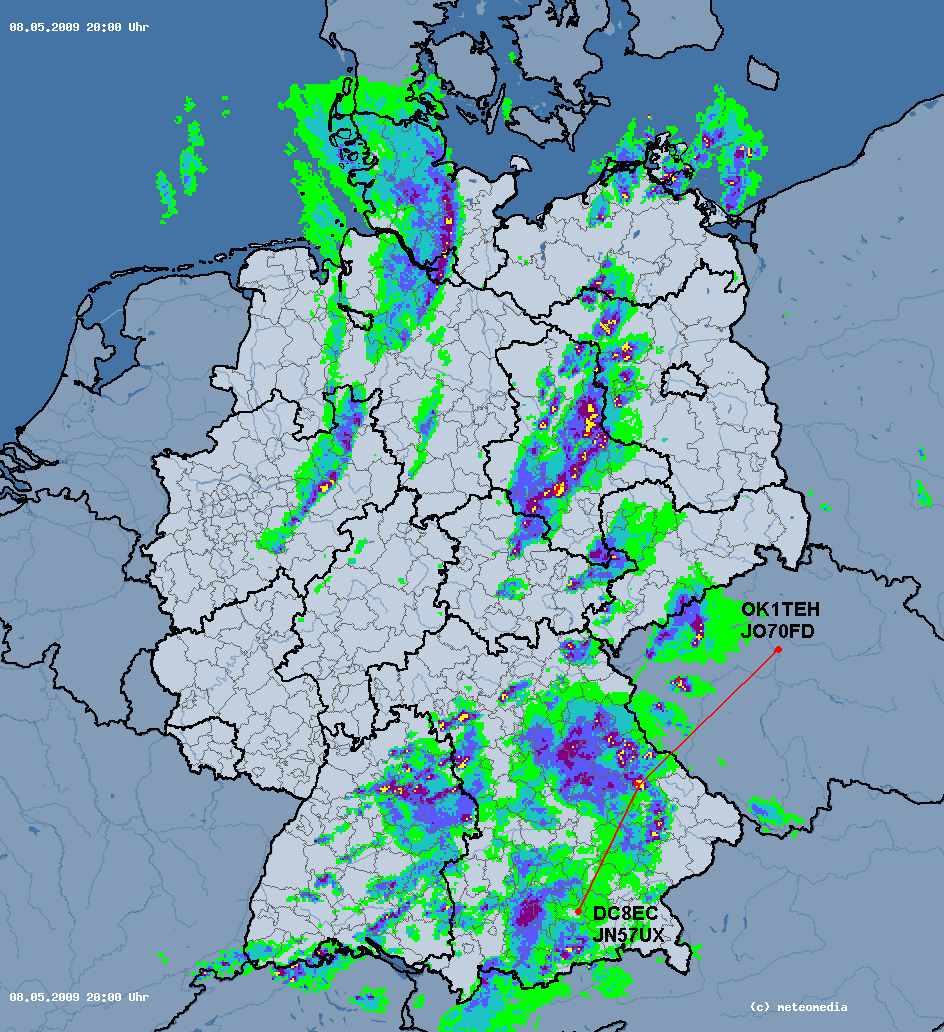

20.06.06 18:33 10368110 DC8EC 57S 51S JN57UX 314 #16 QTF 230
20.06.06 18:41 10368115 DL6NCI 59S+20 59S JO50VI 192 QTF 240

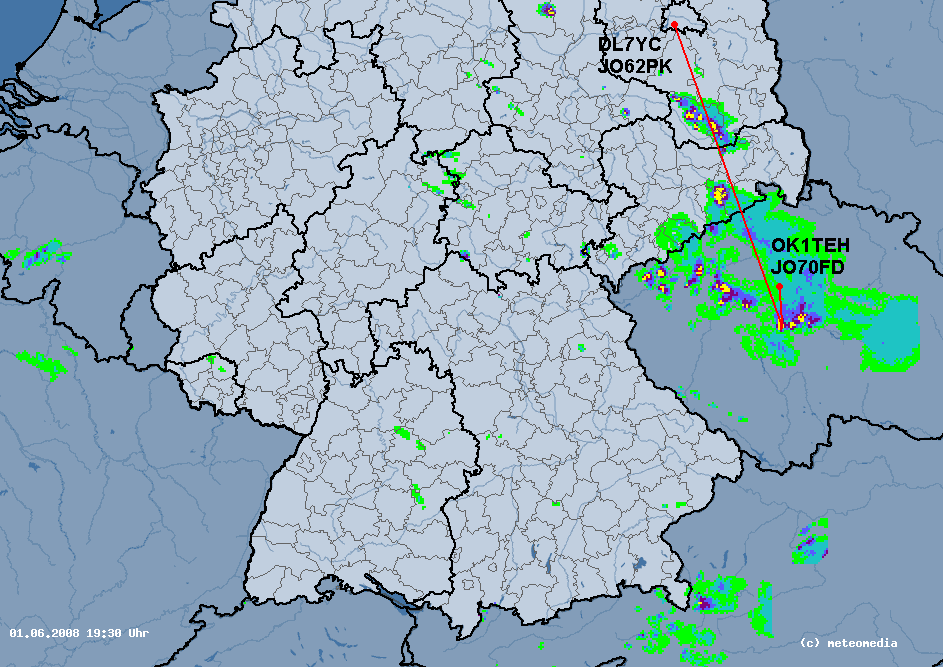

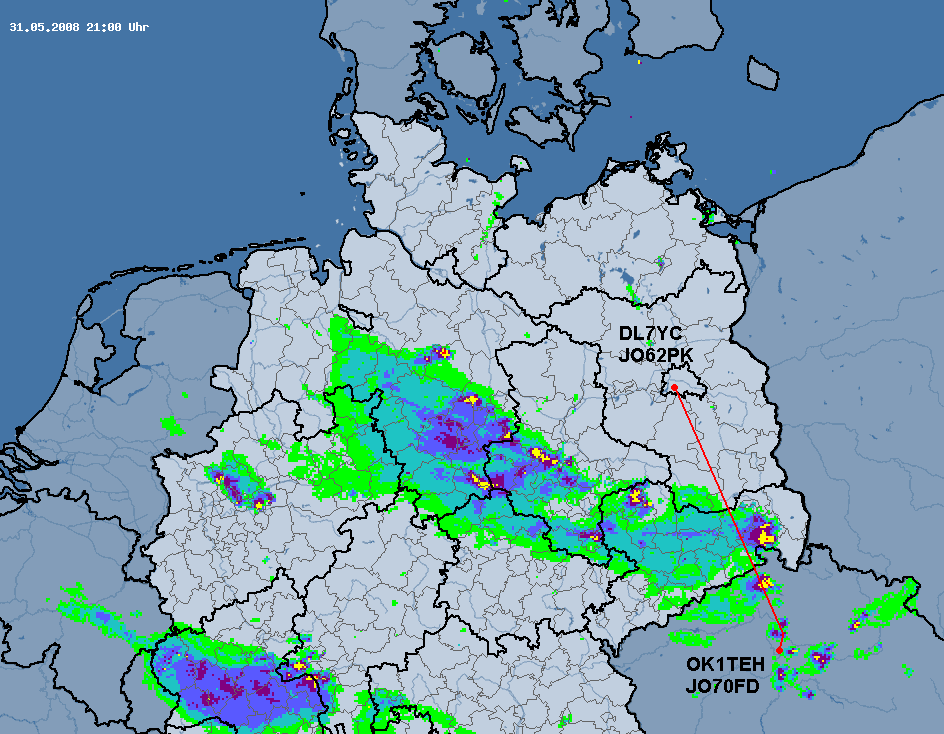

21.06.06 15:24 10368103 DL7YC 59S+ 52S JO62PR 299 #17 QTF 180
21.06.06 16:53 10368110 OM3LQ 59S+ 58S JN88MK 267 QTF 130
21.06.06 17:25 10368110 DL4DTU 57S 55S JO61TB 119 #18 QTF 100

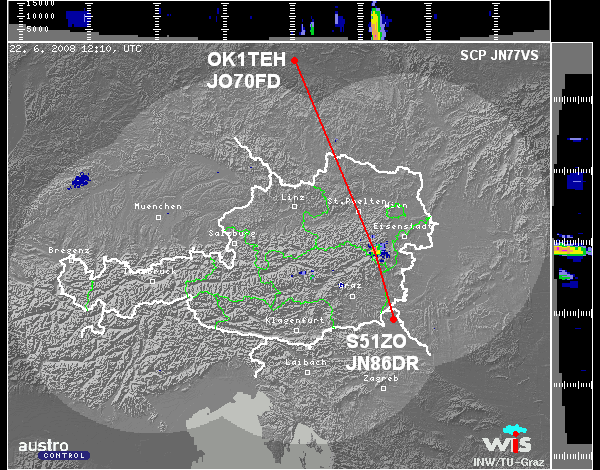

25.06.06 14:28 10368100 S51ZO 59S 55S JN86DR 403 #19 7th dxcc QTF 180 # # + QSL CARD
25.06.06 14:36 10368100 I4XCC 57S 55S JN63GV 710 QTF 180 #
25.06.06 15:00 10368110 S51ZO 59s+ 57S JN86DR 403 QTF 180 # #
25.06.06 15:22 10368095 S51ZO 59s+ 59S JN86DR 403 QTF 180 # #
25.06.06 15:23 10368095 OM3LQ 59S+ 59S JN88MK 267 QTF 180
25.06.06 15:39 10368100 DK5WMA 57s 55s JO60KT 135 QTF 180
25.06.06 15:54 10368115 S51ZO 55s 55s JN86DR 403 by ok1vpz SSB
25.06.06 16:02 10368095 DL3MBG 59S 59S JN67JX 270 QTF 170
25.06.06 16:18 10368100 OK1AIY/P 59S 59S JO70SQ 98 QTF 170
25.06.06 16:42 10368085 DQ2000B 57S 55S JO50VF 191 QTF 160
27.06.06 14:08 10368106 DJ1KP 59S 57S JO40JJ 405 QTF 250
27.06.06 16:35 10368130 9A1Z 55S 55S JN86EL 432 8th dxcc QTF 180 # # + QSL CARD
27.06.06 19:20 10368100 OM3LQ 59S 56S JN88MK 267 QTF 170
28.06.06 16:51 10368130 I4XCC 51-55S 52S JN63GV 710 QTF 180 also hrd I6XCK/6 max 58S ssb 737km! #
06.07.06 12:49 10368105 OK2QW 59S 59S JN99FN 295 QTF 180
06.07.06 12:51 10368100 OK2VSO 59S 55S JN99AJ 271 QTF 190
06.07.06 13:52 10368100 OK2POI 59S 55S JN99AJ 271 QTF 190
06.07.06 15:27 10368115 OK1VAM 59 59 JN79IX 26
06.07.06 15:33 10368115 OK1AIY/P 59+60 59+ JO70SQ 98 Zaly, 55 on op. wave guide
06.07.06 17:03 10368100 I6XCK/6 51S JN63QN hrd again, however no cw skills..
06.07.06 19:35 10368095 DL1GGT 55S 51S JN58AO 364 #20 QTF 220
06.07.06 20:36 10368105 S51ZO 59S 55S JN86DR 403 QTF 180
08.07.06 08:20 10368100 OK2POI 57S 55S JN99AJ 271 QTF 180
08.07.06 18:38 10368100 OM3LQ 59S 57S JN88MK 267
08.07.06 19:04 10368100 DK2GR 57S 55S JN59IE 291
08.07.06 19:17 10368100 OK2POI 59S 55S JN99AJ 271 doppler -2,5kHz
08.07.06 21:14 10368100 SP6GWB 55-7S 55-59S JO80HK 159 qrp 0.2 W here
08.07.06 14:00 10368100 SP7JSG 59S+ 59s KO01BW 445 #21
09.07.06 14:52 10368110 OM3CLS 57S 57S JN99FC 311 QTF 120
09.07.06 15:16 10368100 DK5WMA 59S+ 57S JO60KT 135 QTF 140
09.07.06 15:25 10368100 OK2POI 59S++ 59S JN99AJ 271 QTF 140
09.07.06 15:27 10368300 OK2POI 59S FM 59S JN99AJ 271 QTF 140
09.07.06 16:16 10368100 OK2BFH 55S 53S JN99GU 295 QTF 075/280
15.07.06 17:02 10368110 DQ2006S 56 51 JO60OM 98 guys from DM7A :)
16.07.06 08:11 10368100 OK1KZE 59 001 59 001 JN79FX 19
16.07.06 08:17 10368100 OK1FBX 59 002 59 001 JO60WD 42
16.07.06 09:29 10368100 OK1VAM 59 003 59 003 JN79IX 26
16.07.06 09:55 10368110 OK2KJT 579004 559002 JN99AJ 271 tropo!
26.07.06 18:06 10368100 DJ5NQ 57S 51S JN47QV 448 #22 QTF 230

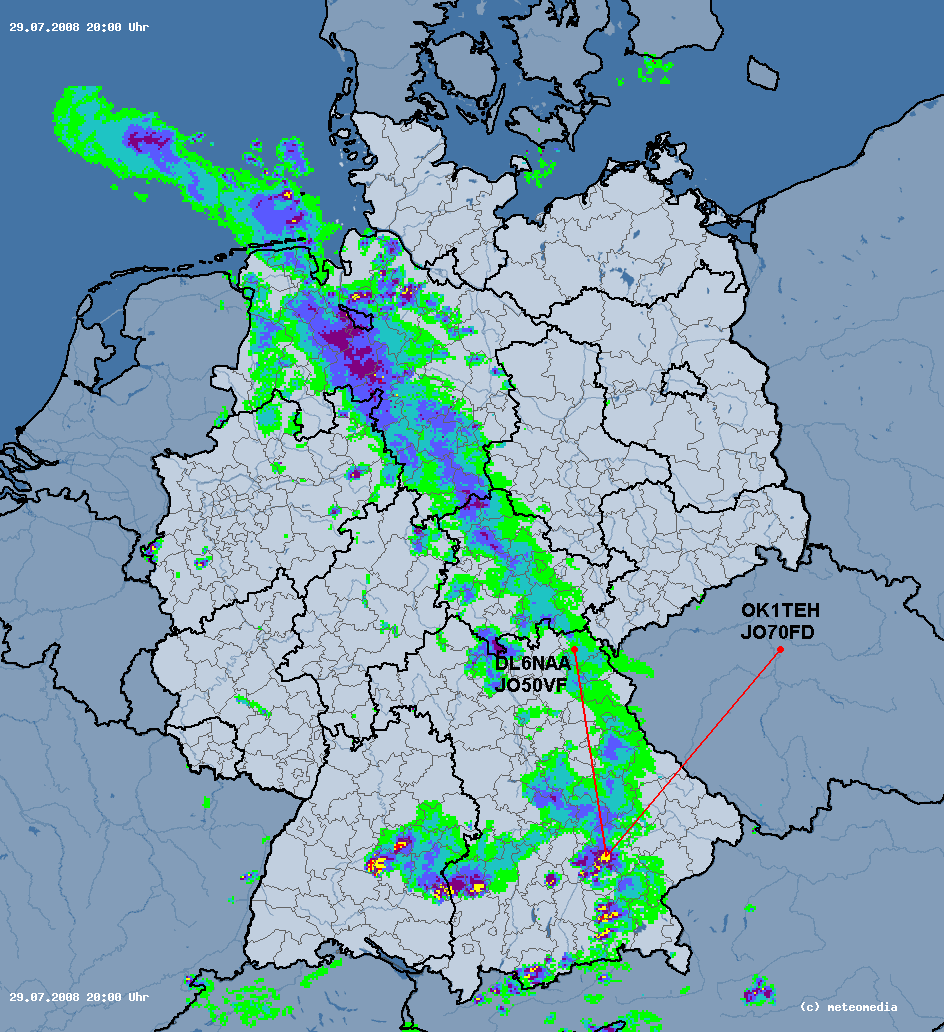

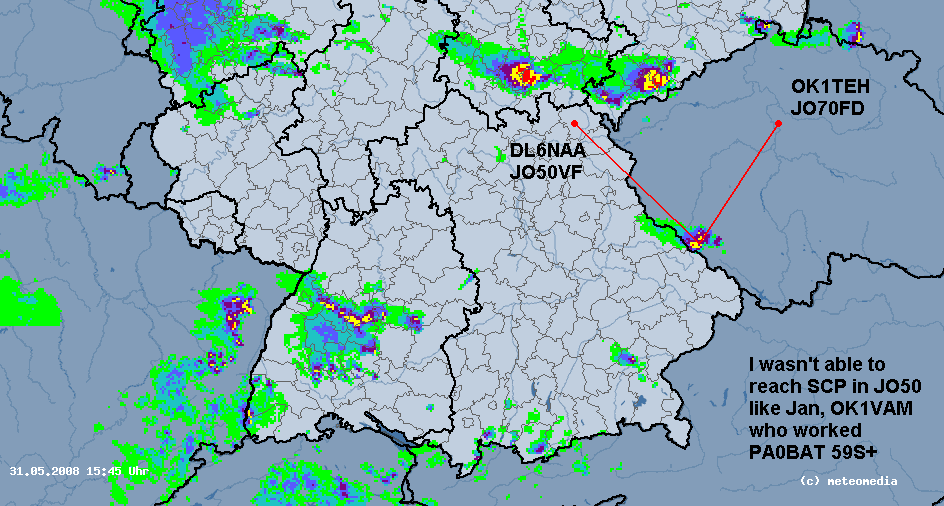

27.07.06 14:36 10368096 DL6NAA 59S+ 55S JO50VF 191 QTF 220
28.07.06 12:33 10368096 DL6NAA 59S 53S JO50VF 191
28.07.06 13:19 10368098 OE5VRL/5 59S+ 59S SSB JN78DK 190
28.07.06 13:24 10368300 OE5VRL/5 59S+20 59S+ JN78DK 190 QTF 070 SCP JO70JC
28.07.06 14:02 10368100 DM2AFN 59S 55S JO61WB 110 QTF 070/040
29.07.06 12:14 10368100 OK2BFH 59S 57S JN99GU 295 QTF 090/
29.07.06 12:23 10368100 SP9TTG 59S+20 57S JO90NU 340 #23 - http://www.mikrofale.net/sp9.html#ttg
29.07.06 13:48 10368100 DM2AFN 59S 55S JO61WB 110
29.07.06 13:50 10368100 OK1AIY/P 59 59 JO70SQ 98 1030m ASL Zaly
29.07.06 14:34 10368100 DK5WMA 59S+20 59S JO60KT 135 QTF 250/
31.07.06 17:42 10368120 DL6NCI 59S 53S JO50VI 192 QTF 240
31.07.06 17:56 10368110 DL3MBG 59S 53S JN67JX 270 #24 QTF 250
20.08.06 08:15 10368095 OK1FBX 59 001 59 001 JO60WD 42
20.08.06 08:28 10368100 OK1VAM 59 002 59 002 JN79IX 26
20.08.06 08:36 10368110 OK2KJT 559003 519001 JN99AJ 271
26.08.06 17:40 10368090 DL6NAA 57S 55S JO50VF 191 QTF 050 CS
17.09.06 09:31 10368110 OK2KJT 579001 539002 JN99AJ 271
17.09.06 09:43 10368100 OK1VAM 59 002 59 002 JN79IX 26
17.09.06 09:56 10368100 OK1FBX 59 003 55 005 JO60WD 42
02.12.06 10:12 10368100 OK1FBX 59 001 55 002 JO60WD 42
=======================================================================
21.01.07 09:31 10368215 OK1FBX 59 001 49 001 JO60WD 42
21.01.07 10:44 10368095 SP6BTV 59 002 59 001 JO80DL 136
21.01.07 10:46 10368095 SP6OPX 59 003 59 001 JO80DL 136
21.01.07 10:48 10368095 SP6RYL 59 004 59 001 JO80DL 136
21.01.07 10:52 10368095 SP6KBL 59 005 59 001 JO80DL 136
18.02.07 08:34 10368101 OK1VAM 59 001 59 001 JN79IX 26
18.02.07 09:10 10GHz OK1FBX 59 002 59 001 JO60WD 42
18.02.07 09:28 10368120 OE5VRL/5 579003 539001 JN78DK 191
18.02.07 10:15 10GHz OK1MTZ 59 004 59 001 JO70DB 16
18.02.07 10:59 10368100 SP6BTV 51 005 51 001 JO80DL 136
18.02.07 11:16 10368100 SP6RYL 52 54 JO80DL 136
03.03.07 14:27 10GHz OL3Z 59 001 59 006 JN79FX 19
03.03.07 14:35 10GHz OK1IA 59S002 599004 JN79NU 58
03.03.07 16:22 10GHz OK1KKD 59 003 59 001 JO60WD 42
03.03.07 16:29 10GHz OE5VRL/5 59S004 559011 JN78DK 191
03.03.07 16:35 10GHz OK1VAM/P 59 005 59 014 JO60LJ 111
03.03.07 17:10 10GHz OK1DSO 59 006 59 003 JO70DC 13
03.03.07 19:47 10GHz OK5Z 599007 599011 JN89AK 139
03.03.07 21:39 10GHz OK1KIK 59 008 59 004 JO70TQ 103
04.03.07 12:40 10GHz OK1VEI 59 009 59 005 JO70ED 6
04.03.07 12:45 10GHz OK2QI 59 010 59 017 JO80NC 191
18.03.07 08:12 10GHz OK1KZE 59 001 59 001 JN79FX 19
18.03.07 09:39 10GHz OK1FBX 59 002 42 007 JO60WD 42
18.03.07 09:51 10GHz OK2KJT 59S003 59S003 JN99AJ 271 QTF 090/
18.03.07 10:06 10GHz DO1UKA/P 59 004 59 001 JO70IT 77
18.03.07 10:07 10GHz DG1VR/P 59 005 59 001 JO70IT 77
18.03.07 10:08 10GHz DL1DLR/P 59 006 59 001 JO70IT 77
18.03.07 10:09 10GHz DL3DRA/P 59 007 59 001 JO70IT 77
08.04.07 08:13 10GHz OK1JKT/P 59 001 59 001 JO60RN 85 Easter Contest
08.04.07 10:11 10GHz OK1VM 59 002 59 001 JO60VR 81
08.04.07 10:12 10GHz OL4N 59 003 59 001 JO60VR 81
08.04.07 10:29 10GHz OK7RA 59 004 59 002 JO60LJ 111
08.04.07 10:50 10GHz OK2KJT 559005 519005 JN99AJ 271
08.04.07 12:04 10GHz OK2QI 59 006 59 006 JO80NC 191
15.04.07 09:04 10GHz OK1JKT/P 59 001 59 003 JO60RN 85
15.04.07 09:06 10GHz OE5VRL/5 579002 539001 JN78DK 191
15.04.07 09:30 10GHz OK2KJT 529003 519004 JN99AJ 271
15.04.07 09:37 10GHz OK1FBX 59 004 59 002 JO60WD 42
15.04.07 09:39 10GHz OK1DSO 59 005 59 001 JO70DC 13

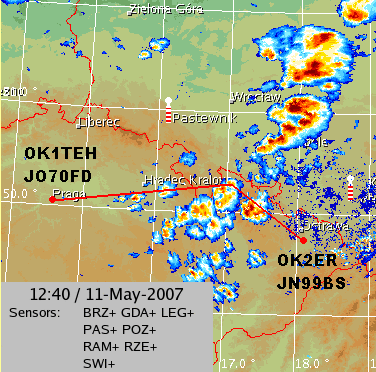

11.05.07 13:07 10368105 OK2ER 55S 55S JN99BS 267 QTF 080/
12.05.07 12:36 10368095 OK2QI/P 59+ 59+20 JO80NC 191 Franta

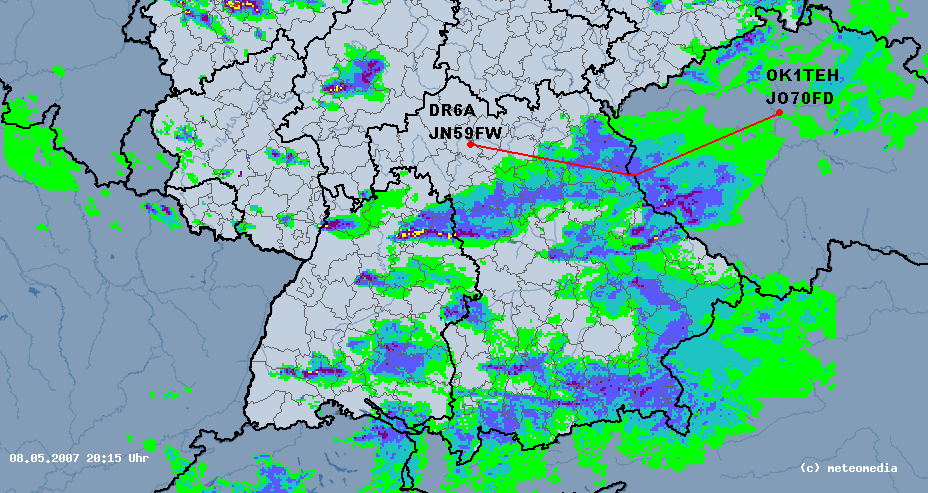

08.05.07 18:10 10368100 DR6A 52S 51S JN59FW 288 QTF 245/098

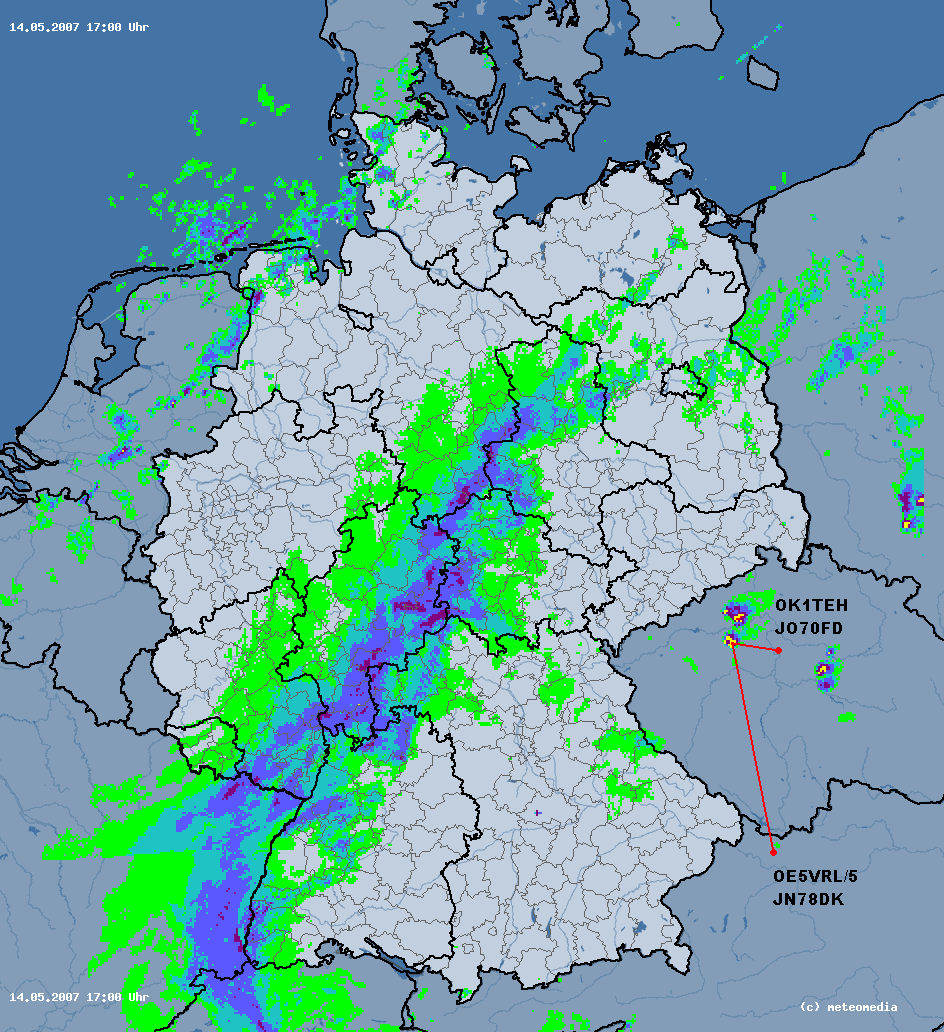

14.05.07 14:46 10368100 OE5VRL/5 59S+20 55S JN78DK 190 QTF 270/347

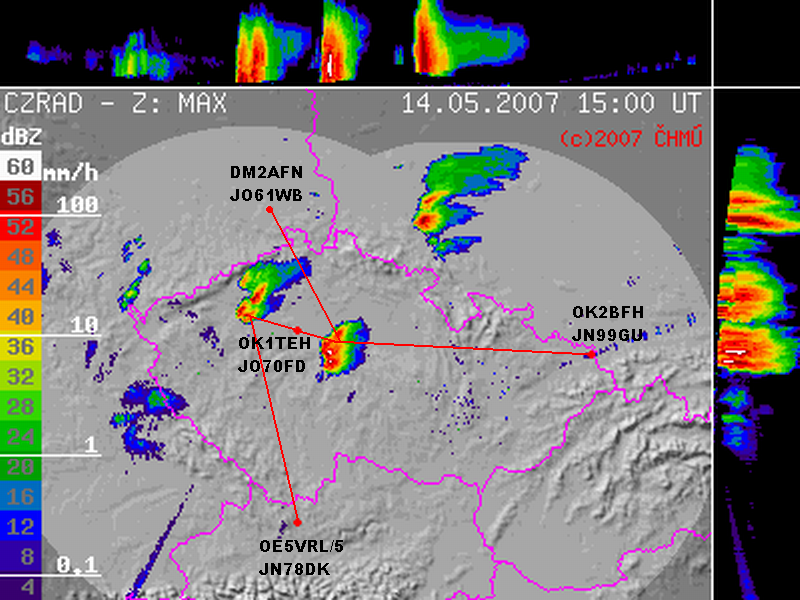

14.05.07 15:11 10368102 OK2BFH 59S 57S JN99GU 295 QTF 100/274
14.05.07 15:20 10368105 DM2AFN 59S+60 59S SSB JO61WB 110 QTF 090/140
14.05.07 15:21 10368360 DM2AFN 59S+ 59S FM JO61WB 110 QTF 090/140 FRITZ 6W 2M ofset

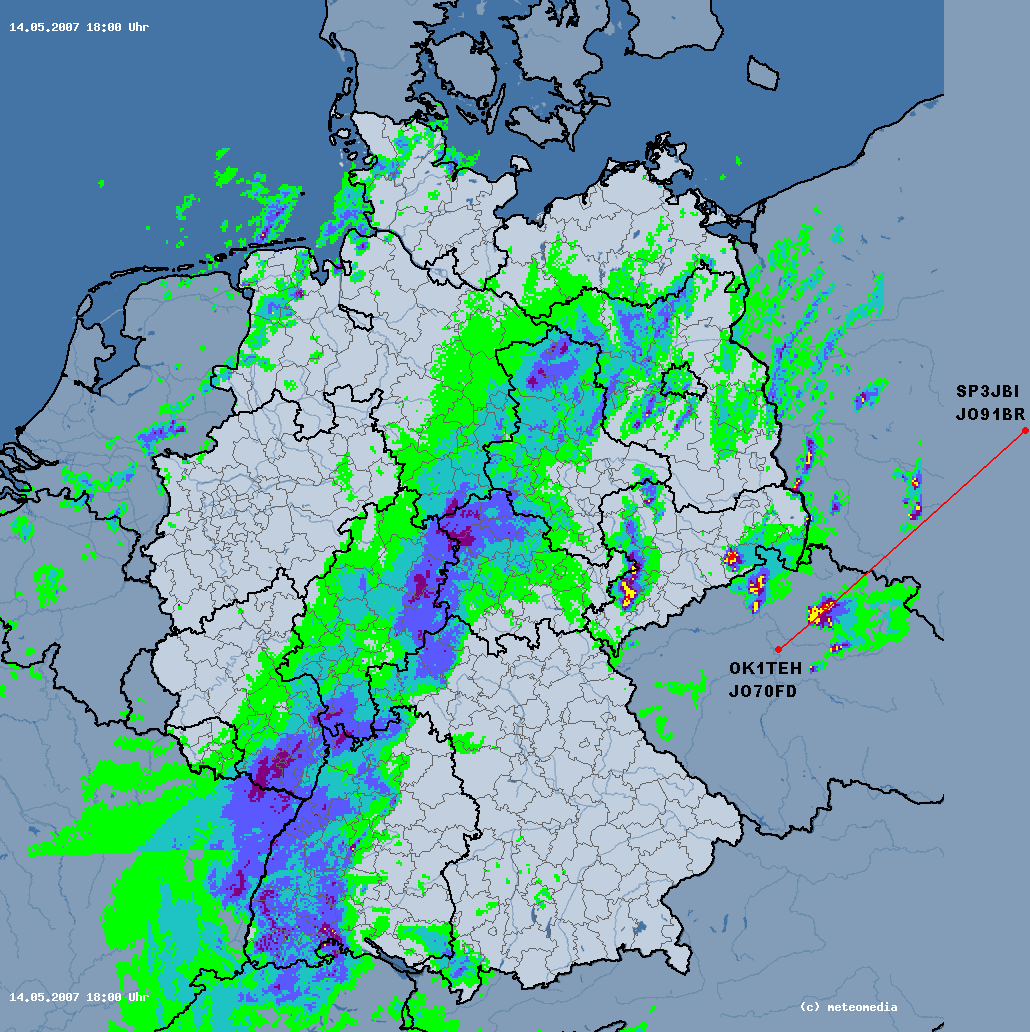

14.05.07 15:47 10368100 SP3JBI 59S+ 59S JO91BR 312 QTF 050/245
14.05.07 15:58 10368100 DG1BHA 57S 55S JO73DB 325 #25 QTF 030/
14.05.07 16:10 10368100 OK2ZI 59S 55S JN89AD 160 QTF 030/
14.05.07 16:14 10368105 OK1AIY/P 59S+59+ 59S SSB JO70SQ 98 QTF 040/
14.05.07 16:23 10368125 SP2DDX 59S 59S JO83VE 410 #26 QTF 025/
14.05.07 16:28 10368140 DL1SUN 59S 53S JO53PN 438 #27 QTF 020/ - CHECK MP3 + PHOTO
14.05.07 16:56 10368085 DL7YC 57S 51S JO62PK 268 QTF 025/

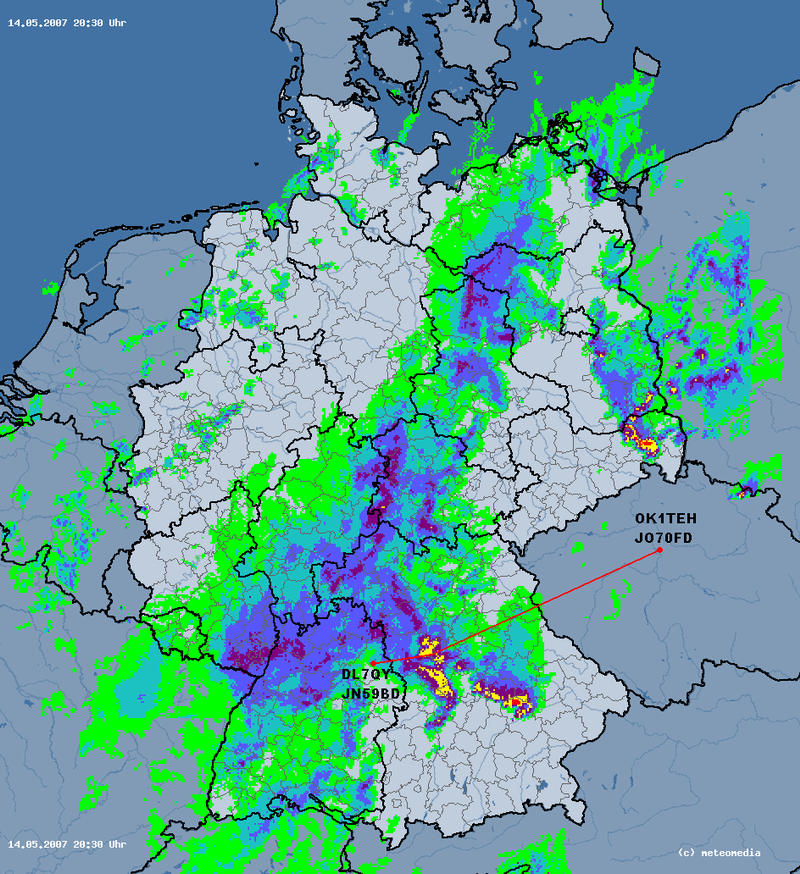

14.05.07 18:22 10368105 DL7QY 55S 52S JN59BD 332 QTF 240/085
14.05.07 19:02 10368100 DK2RV 59S 51S JN58UC 303 QTF 240/ SCP JN68TU
14.05.07 19:19 10368100 DH9YX 59S++ 59S SSB JN68OL 207 #28 QTF 240/ KARL
14.05.07 20:00 10368105 OK2POI 59S 55S JN99AJ 271 QTF 240/

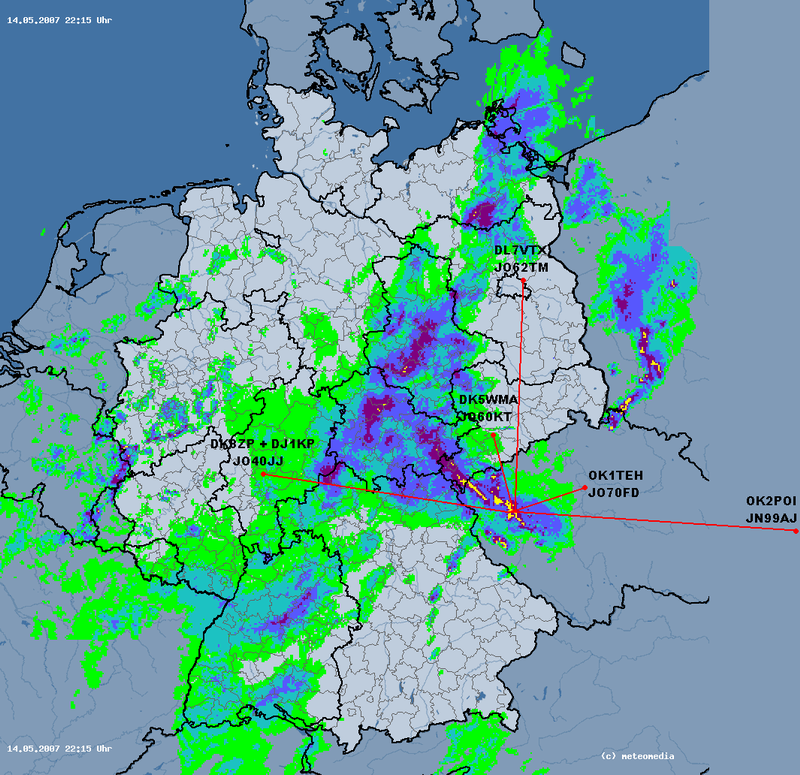

14.05.07 20:12 10368105 DK8ZP 59S 58S JO40JJ 405 QTF 240/
14.05.07 20:22 10368100 DK5WMA 59S 55S JO60KT 135 QTF 250/
14.05.07 20:30 10368100 DJ1KP 59S 55S SSB JO40JJ 405 QTF 250/
14.05.07 20:49 10368100 DL7VTX 59S 59S JO62TM 271 QTF 265/
  Blanka Dobrovolná from
Zdislavy (JO70KS) near Liberec shows hails, which were falling during night
T-storm on 15th May. Unusually big hails broke a car window. Foto:
ČTK/Radek Petrášek (source) |
20.05.07 08:12 10368100 OK2KJT 579001 539001 JN99AJ 271 20.05.07 08:39 10368100 OK1WDR 59 002 59 003 JO70NA 106 20.05.07 08:50 10368100 OK1VAM 59 003 59 001 JN79IX 136 22.05.07 11:25 10368105 DK5WMA 59S 59S JO60KT 135 QTF 280/130 22.05.07 11:29 10368300 DK5WMA 59S+20 59S FM JO60KT 135 QTF 280/130 hrd me 59s+40 club DK0CWC 22.05.07 12:07 10368100 DH9YX 59S+40 59S SSB JN68OL 207 QTF 205/NORTHEAST 22.05.07 13:48 10368091 OK2QW 55S 55S JN99FN 295 QTF 090/ 22.05.07 14:20 10368101 OK2BFH 59S 55s JN99GU 295 QTF 090/276 22.05.07 14:38 10368103 DM2AFN 59S 59S JO61WB 110 QTF 170/ 22.05.07 16:01 10368100 SP3JBI 59S+40 59S SSB JO91BR 312 QTF 050/240 22.05.07 16:45 10360095 SP6GWB 59S 59S JO80IK 164 QTF 095/ 22.05.07 18:34 10368120 OK2POI 59S 55S JN99AJ 271 QTF 070/300 22.05.07 18:46 10368105 OK2BFH 57S 55S JN99GU 295 QTF 080/275 22.05.07 19:05 10368081 DL1ATI 57S 53S JO50QU 233 QTF 050/ 22.05.07 19:11 10368100 SP3JMZ 59S 55S JO82KJ 302 #29 QTF 050/ 22.05.07 19:34 10368110 SP3LYU 59S 55S JO82KK 306 QTF 050/

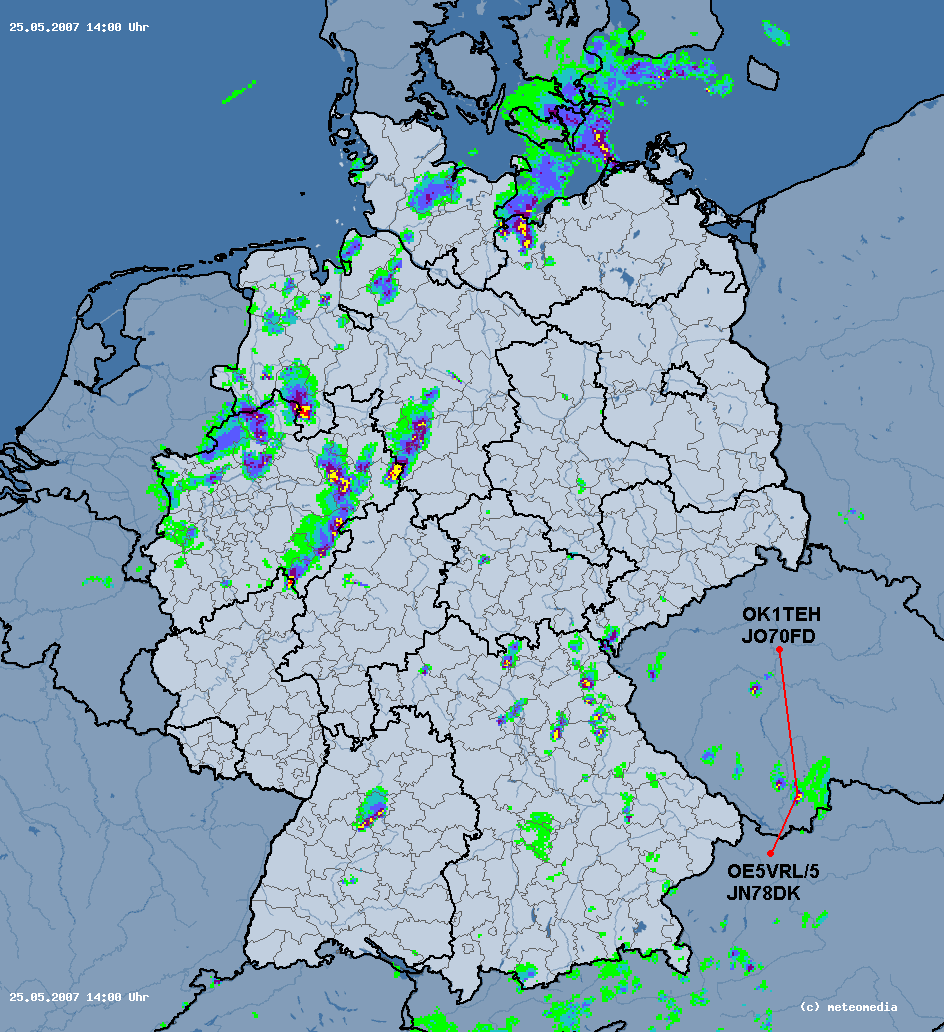

25.05.07 12:02 10368100 OE5VRL/5 59S 57S JN78DK 190 QTF 180/ 25.05.07 15:16 10368100 DL4DTU 59S 55S JO61TB 118 QTF 250 25.05.07 15:34 10368100 DL3MBG 59S 59S JN67JX 270 QTF 250 25.05.07 15:50 10368100 OE5XBL 59S 56S JN68PC 243 QTF 230/350 25.05.07 18:35 10368095 DG1BHA 53S 51S?SSB JO73DB QTF 030 Not complete 25.05.07 18:36 10368095 DH2UAK 59S 59S SSB JO71FU 190 #30 QTF 030 ssb 25.05.07 19:05 10368099 OK2BFH 59S 55S JN99GU 295 QTF 040 25.05.07 19:09 10368122 SP9TTG 59S 59S JO90NU 340 QTF 040/270 25.05.07 19:17 10368090 SP3JBI 59S 59s JO91BR 312 QTF 040/242 25.05.07 19:47 10368100 DK5WMA 59S 59S JO60KT 135 QTF 140/140 25.05.07 20:09 10368095 OK2POI 59S+20 59S SSB JN99AJ 271 QTF 140/ scp jn79nt 25.05.07 20:25 10368095 SP9TTG 59S+40 59S SSB JO90NU 340 QTF 080/260 26.05.07 18:03 10368100 OK2QI 59++ 59+ SSB JO80NC 191 26.05.07 18:20 10368100 OK2BFH 59S 55S JN99GU 295 QTF 070/291 + MP3 26.05.07 18:26 10368095 OK2ER 57S 56S JN99BS 267 QTF 070/270 + MP3 26.05.07 18:42 10368085 SP9SOO 55S 55S SSB JN99OV 345 QTF 070 26.05.07 18:59 10368120 SP9TTG 559 TR 559 JO90NU 340 new tropo odx 27.05.07 12:24 10368100 SP6GWB 59S+40 59S SSB JO80IK 164 SCP jo70ld 27.05.07 13:06 10368100 SP3JMZ 59S++ 59S SSB JO82KJ 302 QTF 040/ 4W 60cm DISH 27.05.07 13:09 10368100 SP9JDP 57S 559 JN99HW 300 QTF 040/ 27.05.07 13:14 10368100 SP9KJU 57S 559 JN99HW 300 QTF 040/ 27.05.07 14:00 10368103 SP7VC 57S 55S JO91SS 400 QTF 040/ 27.05.07 14:16 10368150 OK2ZAW 55S 55S JN79XN 126 QTF 090/343 06.06.07 13:03 10368100 OK2ER 59S 57S JN99BS 267 QTF 090/ 06.06.07 15:08 10358100 SP9SOO 59S 55 SSB JN99OV 345 QTF 090/ 06.06.07 15:13 10368099 OK2BFH 59S 55S JN99GU 295 QTF 090/274

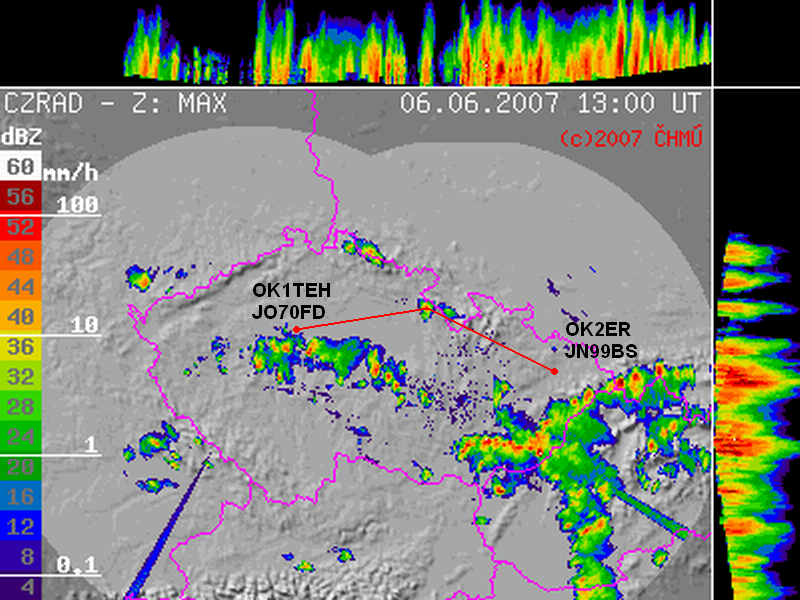

07.06.07 14:00 10368101 OK2BFH 55S 53S JN99GU 295 QTF 070/291 07.06.07 14:07 10368102 OK2ER 55S 55S JN99BS 267 QTF 070/315 07.06.07 14:45 10368105 DM2AFN 57S 55S JO61WB 110 QTF 070/110 07.06.07 16:31 10368110 DL7YC 57S 52S JO62PK 268 QTF 037/ 07.06.07 16:33 10368110 SP2DDX 59S 59S JO83VE 410 QTF 037/ 07.06.07 16:59 10368140 DL1ATI 57S 57S JO50QU 233 QTF 022/ 09.06.07 13:30 10368100 OE5VRL/5 59S 56S JN78DK 191 QTF 040/ 09.06.07 14:22 10368105 DM2AFN 59S 59S JO61WB 110 QTF 033/85 09.06.07 14:26 10368105 SP6GWB 59S+ 59S JO80EJ 140 QTF 035/357 09.06.07 14:31 10368105 DL1RG 55S 55S JO62KN 291 QTF 035/124 09.06.07 14:52 10368105 SP3JBI 57S 57S JO91BR 312 QTF 040/240 09.06.07 14:59 10368105 OK2BFH 59S 56S JN99GU 295 QTF 045/ 09.06.07 15:54 10368106 DL1ATI 57S 55S JO50QU 233 QTF 068/ 10.06.07 12:12 10368102 OM3CLS 59S 599 JN99FC 311 QTF 100/ 10.06.07 12:30 10368100 DM2AFN 59S 57S JO61WB 110 QTF 200/180 10.06.07 12:38 10368100 OE5KE 59S 59S JN68DF 265 QTF 200/347 15.06.07 13:59 10368300 OE5VRL/5 57S 57S FM JN78DK 191 QTF 180/ 15.06.07 14:23 10368095 DL0DA 59S 59S JO61WB 110 QTF 220/ 15.06.07 15:23 10368100 DK5AI 59S 55S JO51GO 320 QTF 070/123 15.06.07 15:45 10368100 S51ZO 51S 55S JN86DR 403 QTF 220/ 17.06.07 07:29 10368100 OE5VRL/5 579001 529003 JN78DK 191 ALPE ADRIA UHF/SHF CONTEST 2007 17.06.07 09:05 10368105 OK2KJT 599002 559005 JN99AJ 271 17.06.07 09:06 10368100 OK1JKT/P 59 003 59 003 JO60RN 85 17.06.07 09:34 10368 OK1MTZ 59 004 59 002 JO70DB 16 17.06.07 09:37 10368 OK1FBX 59S005 49 005 JO60WD 42 QTF 130/ 17.06.07 10:17 10368 OK1VAM 59 006 59 005 JN79IX 26 17.06.07 10:23 10368 OE5MKM 59S007 529006 JN67UT 266 QTF 150/ 17.06.07 10:59 10368 OK1DSO 59 008 59 002 JO70DC 13 17.06.07 13:01 10368 OK2POI 559009 559003 JN99AJ 271 25.06.07 14:56 10368105 I6XCK/6 59S 55S SSB JN63QN 737 QTF 180/ - MP3 25.06.07 15:31 10368130 S51ZO 55S 57S JN86DR 403 QTF 180/ 25.06.07 15:33 10368130 9A1Z 55S 55S JN86EL 432 QTF 180/ MP3 25.06.07 15:52 10368107 I6XCK/6 53S 51S SSB jn63QN 737 QTF 180/ WITH OK1VPZ 25.06.07 18:03 10368105 S51ZO 59S 55S JN86DR 403 QTF 160/ 25.06.07 19:13 10368100 OK1BYR/P 59S 55S JN79IO 63 QTF 090/ 59/59 SSB TR 25.06.07 19:39 10368100 OK2BFH 57S 55S JN99GU 295 QTF 080/280

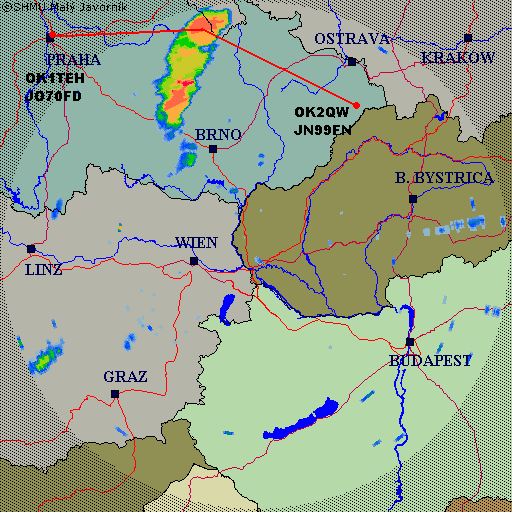

01.07.07 19:42 10368100 OK2QW 59S 55S JN99FN 295 QTF 050/ scp jo70qj 01.07.07 19:54 10368100 OK8ID 59+ 59 JO70HE 13 OM3ID 02.07.07 12:47 10368102 OK2QW 59S 59S JN99FN 295 QTF 110 02.07.07 12:55 10368300 OK2QW 57S 52S FM JN99FN 295 QTF 110 02.07.07 17:31 10368095 OK8ID 599 599 JO70HE 13 19.07.07 13:20 10368100 DL6NAA 59S 55S JO50VF 191 QTF 250/205 19.07.07 14:24 10368100 DL7QY 59S 59S JN59BD 332 QTF 250/ 19.07.07 14:40 10368090 DJ1KP 59S 59S JO40JJ 405 QTF 250/ 19.07.07 14:42 10368090 DJ1KP 59S 55S SSB JO40JJ 405 QTF 250/ 19.07.07 15:07 10368100 OE5KE 57S 55S JN78DF 214 QTF 250/ You are the only sig here :-) 19.07.07 15:41 10368100 DM2AFN 59S+ 57S JO61WB 110 QTF 250/ 19.07.07 15:44 10368300 DM2AFN 57S 59S FM JO61WB 110 QTF 250/ 19.07.07 16:10 10368095 DH3IAJ 59S 59S JN48GD 486 #31 QTF 240/ 19.07.07 16:39 10368100 DK5AI 59S 59S JO51GO 320 QTF 230/ 19.07.07 16:52 10368300 DK5AI 57S 57S FM JO51GO 320 QTF 230/ 19.07.07 17:10 10368100 DL4DTU 51S 53S JO61TB 118 QTF 230/ 19.07.07 17:11 10368100 DL1VDL 59S 57S JO61WB 110 QTF 230/ 19.07.07 17:22 10368100 SP6GWB/P 59S+40 59S JO80IL 165 QTF 220/ 19.07.07 17:49 10368095 DL7YC 59S 57S JO62PK 268 QTF 180/ 19.07.07 17:51 10368095 OK2ER 59S 59S JN99BS 267 QTF 180/ 19.07.07 18:02 10368300 DL7YC 59S 55S FM JO62FD 263 QTF 160/
20.07.07 16:11 10368102 DK9MN 59s 57s SSB JN58TC 307 QTF 240/ + HRD DJ6JJ JO31
20.07.07 18:33 10368120 HB9AMH/P 52S 41s JN37OE QTF 230/ not completed due to OK1AIY lack of hamspirit...

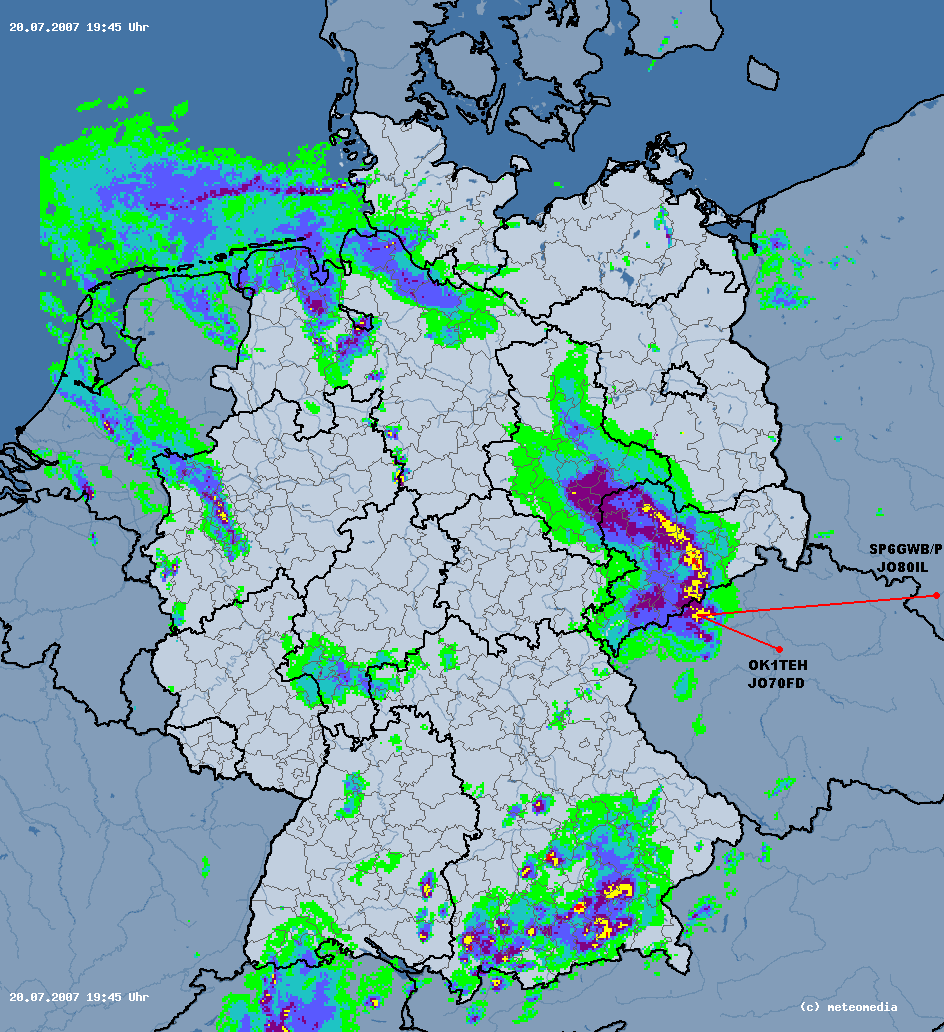

20.07.07 17:48 10368090 SP6GWB/P 59S 55S JO80IL 165 QTF 330/ + HRD I4XCC but too weak for qso
20.07.07 19:46 10368115 SP9TTG 59S 57S JO90NF 334 QTF 60/280
07.08.07 12:45 10368100 OK2ER 59S 55S JN99BS 267 QTF 95/285
07.08.07 18:31 10368120 DL6NCI 59S+ 55S JO50VI 192 QTF 240/120
07.08.07 18:39 10368100 DL7QY 57S 55S JN59BD 332 QTF 250/
07.08.07 20:04 10368100 OK1JKT/P 59S 56S JO60RN 85 QTF 193/250
08.08.07 17:29 10368100 DL7YC 59S 52S JO62PK 268 QTF 285/
08.08.07 17:34 10368094 OK1AIY/P 59 59 JO70SQ 98
08.08.07 17:43 10368094 DL3JAN 59S+ 59S JO61VB 113 QTF 285/
08.08.07 17:44 10368094 OK1AIY/P 59S 59S JO70SQ 98 QTF 285/
08.08.07 17:55 10368100 DM2AFN 59S 57S JO61WB 110 QTF 290/150
08.08.07 18:12 10368110 DL7QY 55S 52S JN59BD 332 QTF 290/
19.08.07 08:23 10368100 OK1VAM 59 001 59001 JN79IX 26
19.08.07 08:44 10368100 OE5VRL/5 59 002 559002 JN78DK 190
19.08.07 08:55 10368100 OK7RA 59 003 59001 JO60LJ 111
19.08.07 09:08 10368100 OK1FBX 59 004 59004 JO60WD 42
19.08.07 16:08 10368103 IK6EFN/6 59S 559 JN63GN 746,3 QTF 205/ NEW RS ODX
19.08.07 16:23 10368103 I6XCK/6 59S 52S SSB JN63GN 746,3 QTF 205/ 100cm dish + 10W in 1700m ASL

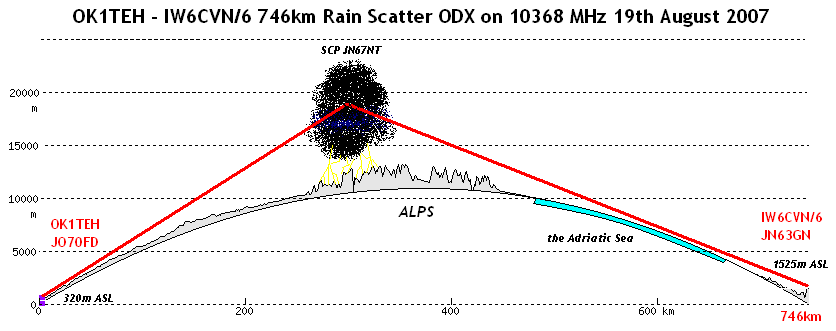

19.08.07 16:25 10368103 IW6CVN/6 59S+ 59S+SSB JN63GN 746,3 QTF 205/ ik6efn/6 iw6atu/6 i6xck/ and I
21.08.07 13:45 10368100 DL6NCI 59S+ 59S+SSB JO50VI 192 QTF 90/100 + AVI 21.08.07 13:45 10368200 DL6NCI 59S+ 59S+FM JO50VI 192 QTF 90/100 21.08.07 13:55 10368200 DO6NX 59S+ 59S FM JO50VI 192 QTF 90/ MARIE + AVI 16.09.07 08:50 10368 OK1BAF 59 001 59001 JN79IO 63 16.09.07 09:02 10368 OK2KJT 579002 559002 JN99AJ 271 16.09.07 10:00 10368 OK1MTZ 59 003 59001 JO70DB 16 16.09.07 10:17 10368 OK8ID 59 004 59001 JO70HE 13 16.09.07 10:22 10368 SP6KBL 59 005 55001 JO80DL 136 16.09.07 10:39 10368 OE5VRL/5 599006 599002 JN78DK 191 24.09.07 09:02 10368100 DK9MN 519 nc 519 JN58TC 307 21.10.07 09:10 10368 OK8ID 59 001 59001 JO70HE 13 21.10.07 09:37 10368 OK1FBX 59 002 59001 JO60WD 42 16.12.07 09:21 10368100 OK1FBX 59 001 59001 JO60WD 42 ========================================================================== 20.01.08 09:08 10368130 OK1FBX 59 001 59 001 JO60WD 42 20.01.08 09:33 10368130 OK1AIY/P 59 002 59 001 JO70SQ 98 20.01.08 10:01 10368095 SP6BTV 59 003 59 001 JO80DL 136 20.01.08 10:03 10368095 SP6KBL 59 004 59 001 JO80DL 136 20.01.08 10:05 10368095 OK2QI 599005 59 001 JO80OC 197 17.02.08 09:37 10368 OK1FBX 59 001 59 001 JO60WD 42 16.03.08 08:24 10368 OK1IEI 57 001 57 001 JO70EC 8 16.03.08 10:00 10368 OK2KJT 599002 559002 JN99AJ 271 16.03.08 10:15 10368 OK1FBX 59 003 59 006 JO60WD 42 16.03.08 10:15 10368 OK1MTZ 59 004 59 004 JO70DB 15 11.04.08 18:29 10368100 DL6NAA 59S 55S JO50VF 191 QTF 173/

On 11th April 2008 were time to time falling several
centimeters hails
(source) |
20.04.08 08:25 10368 OK1DSO 59 001 59 001 JO70DC 13
20.04.08 08:49 10368 OK8ID 59 002 59 001 JO70HE 13
20.04.08 09:13 10368 OK1FBX 57 003 59 002 JO60WD 42
05.05.08 16:58 10368100 OK2ER 59S 57S JN99BS 267 QTF 090/290 + MP3
13.05.08 14:26 10368101 DL7YC 57S 52S JO62PK 268 QTF 000/180 33W + PIC2
13.05.08 17:09 10368100 OE5VRL/5 59S+ 59S SSB JN78DK 191 QTF 170/6deg
13.05.08 17:11 10368200 OE5VRL/5 59S 59S FM JN78DK 191 + MP3

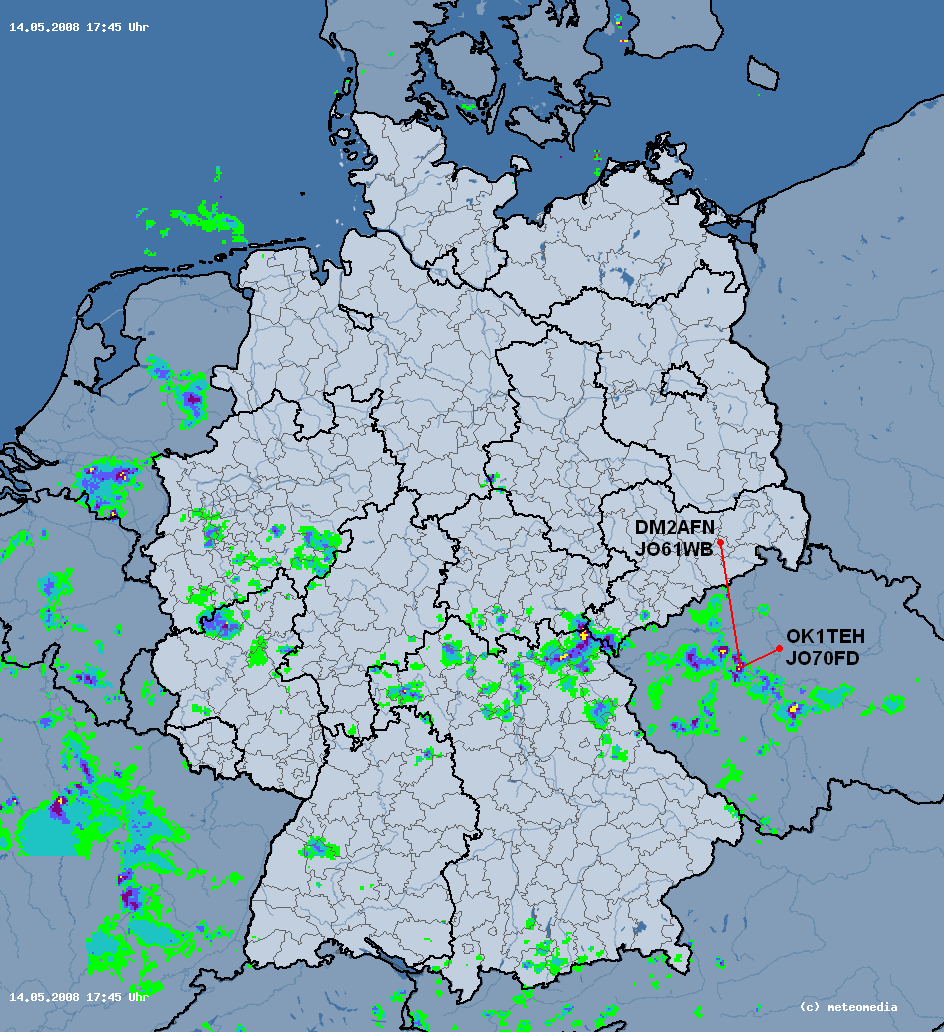

14.05.08 14:13 10368100 OE5VRL/5 59S+20 59S SSB JN78DK 191 QTF 137/165 El 03D + PIC2 + MP3 OF OK1VAM
14.05.08 15:37 10368100 DM2AFN 59S 59S JO61WB 110 QTF 250/190 + MP3
15.05.08 12:49 10368105 DL7QY 55S 55S JN59BD 332 QTF 250/ + MP3
15.05.08 14:59 10368100 DL6NAA 59S+ 59S SSB JO50VF 191 QTF 100/093
15.05.08 14:59 10368100 OK2ER 59S 59S JN99BS 267 QTF 070/
15.05.08 15:12 10368200 OK2ER 57S 59S SSB JN99BS 267 QTF 070/ + MP3
16.05.08 14:29 10368098 OK2ER 55S 57S JN99BS 267 QTF 090/063
17.05.08 14:25 10368200 DL3JAN 59S+ 59S FM JO61VB 112 QTF 140/ 10W + MP3
17.05.08 15:57 10368105 OK2ER 57S 57S JN99BS 267 QTF 090/
17.05.08 16:04 10368105 OK2ER 58S 57S JN99BS 267 QTF 090/

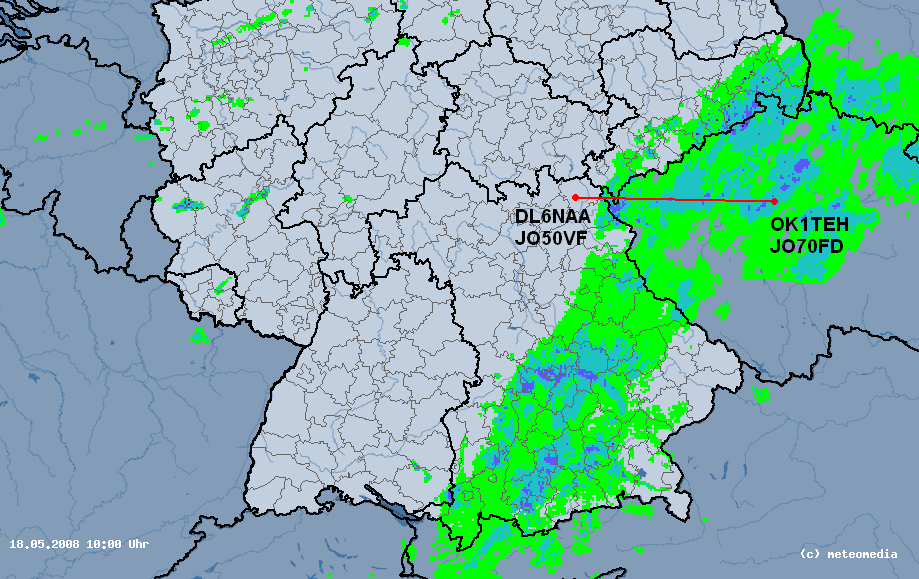

18.05.08 08:02 10368100 DL6NAA 59S 001 599001 JO50VF 191 QTF 250/ OK ACTIVITY CONTEST
18.05.08 08:20 10368100 OK1IEI 59S 002 59 001 JO70EC 8
18.05.08 08:48 10368110 OK2KW 52S 003 559002 JN99BK 275 QTF 090/
18.05.08 08:49 10368100 OK1DSO 59 004 59 003 JO70DC 13
18.05.08 08:50 10368100 OK1FBX 59S 005 59 002 JO60WD 42 QTF 260/
18.05.08 09:29 10368100 DL3JAN 55S 006 53S003 JO61VB 113 QTF 140/
31.05.08 13:48 10368090 DL6NAA 55S 51S JO50VF 191 QTF 216/
31.05.08 18:59 10368100 DL7YC 59S 55S JO62PK 268 QTF 020/
31.05.08 19:20 10368100 SP6HED 59S+40 59S SSB JO80IL 164 QTF 070/ + MP3
31.05.08 19:33 10368110 DL4DTU 59S 59S JO60TR 88 QTF 070/ + MP3
31.05.08 19:36 10368200 DM2AFN 59S 59S FM JO61WB 110 QTF 070/ + MP3
01.06.08 13:30 10368136 9A2SB 57S 55S JN95GM 598 QTF 190/ + MP3 #32
01.06.08 14:10 10368100 SP3JBI 52S 55s JO91BR 312 QTF 090/
01.06.08 14:15 10368104 OM1GX 59S 59s JN88LK 263 QTF 090/330 + MP3
01.06.08 15:13 10367095 OK2PKD 59S 59S JN99BK 276 QTF 070/ + MP3
01.06.08 15:15 10368090 DK5AI 59S 59S JO51GO 320 QTF 070/116
01.06.08 15:30 10368079 DL1ATI 59S 59S JO50QU 233 QTF 070/ + MP3
01.06.08 15:39 10368150 I4XCC 55S 52S JN63GV 710 QTF 170/ + MP3
01.06.08 17:33 10368100 DL7YC 59S 57S JO62PK 268 QTF 180/
01.06.08 19:28 10368110 DL7QY 59S 57S JN59BD 332 QTF 240/

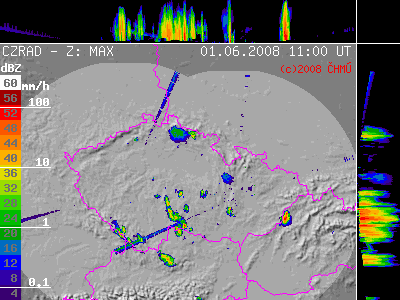

Radar map of RS during 1st June 2008 Flood in Prague during Tstorm at 17 UTC on 1st June 2008

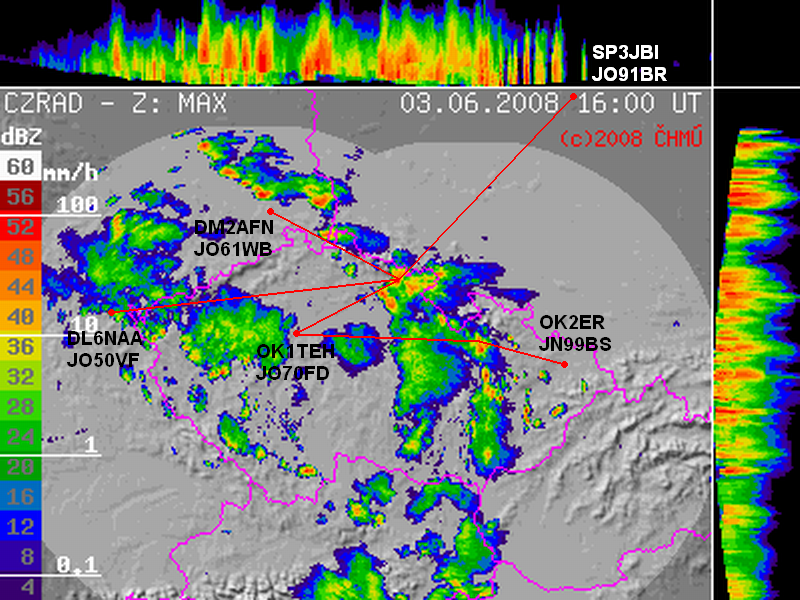

03.06.08 16:18 10368110 SP3JBI 59S 59S JO91BR 312 QTF 050/ 2W
03.06.08 16:27 10368100 DL6NAA 59S 59s JO50VF 191 QTF 050/079
03.06.08 16:43 10368090 OK2ER 57S 59S JN99BS 267 QTF 080/
03.06.08 16:52 10368095 DM2AFN 59S 59S JO61WB 110 QTF 050/115

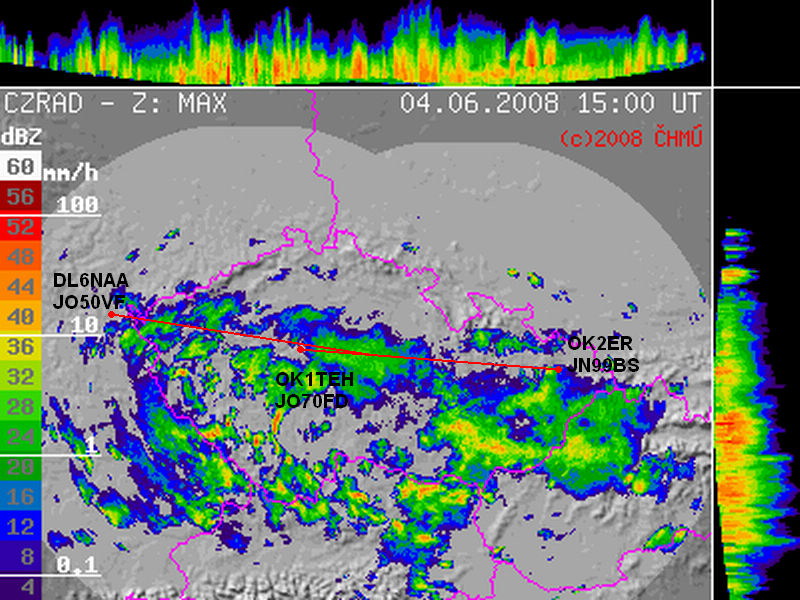

04.06.08 15:01 10368105 OK2ER 59S 59S JN99BS 267 QTF 110/
04.06.08 15:30 10368095 DL6NAA 59S 53S JO50VF 191 QTF 110/094
11.06.08 13:24 10368100 DB6NT 59S 55S JO50VJ 192 QTF 200/
15.06.08 08:23 10368 OM3RDX 55 001 599001 JN99CH 286
15.06.08 08:55 10368105 OK1VAM 59 002 59 002 JN79IX 26
15.06.08 09:43 10368 OK1FBX 59 003 59 008 JO60WD 42
15.06.08 09:49 10368100 OK1MTZ 59S004 59 002 JO70DB 16 QTF 240/
15.06.08 10:48 10368105 OK2KW 57S005 55S005 JN99BK 275 QTF 090/
22.02.08 08:08 10368000 OE5VRL/5 599001 589004 JN78DK 190 ALPE ADRIA UHF/SHD CONTEST 2008
22.02.08 12:19 10368113 S51ZO 59S002 552013 JN86DR 403 QTF 160/122 SCP JN77VS
22.02.08 14:24 10368000 9A2SB 55S003 55S007 JN95GM 598 QTF 160/
23.06.08 11:32 10368100 DL7QY 52S 52S JN59BD 332 QTF 250/ 50cm DISH+10W

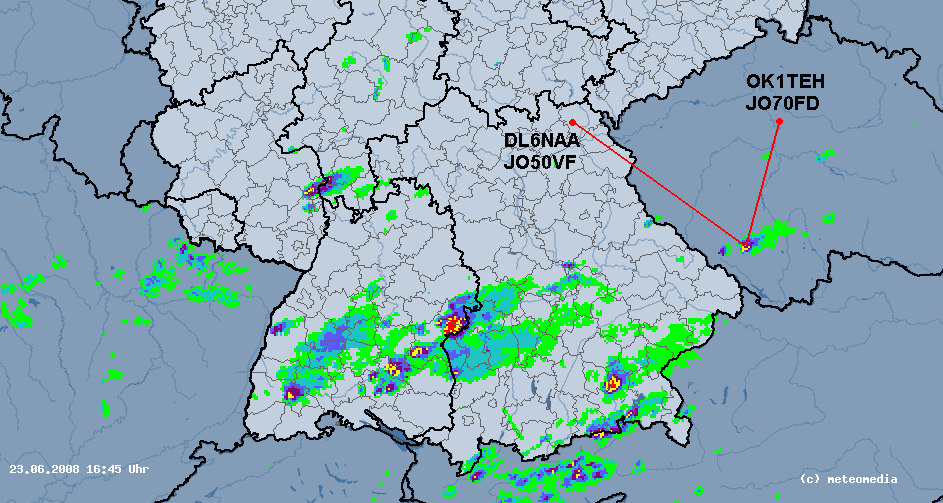

23.06.08 14:37 10368105 DL6NAA 59S+SSB 59S SSB JO50VF 191 QTF 190/

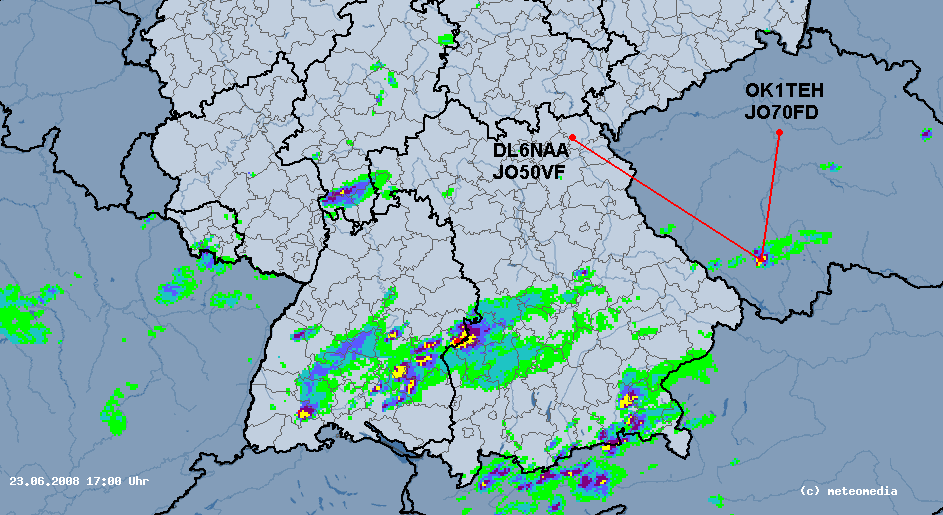

23.06.08 14:50 10368200 DL6NAA 59S+ 59S+FM JO50VF 191 QTF 190/
23.06.08 16:34 10368100 I4XCC 59S 55S JN63GV 710 QTF 170/ + MP3 + MAP2
23.06.08 16:52 10368110 IW4CJM 59S SSB 56S CW JN63HV 709 QTF 170/
23.06.08 17:07 10368130 S51ZO 52S 55S JN86DR 403 QTF 170/
24.06.08 18:03 10368140 9A2SB 55-7S 52S JN95GM 598 QTF 160/
24.06.08 18:24 10368090 OK1YA 59 59 SSB JO70GC 8
|

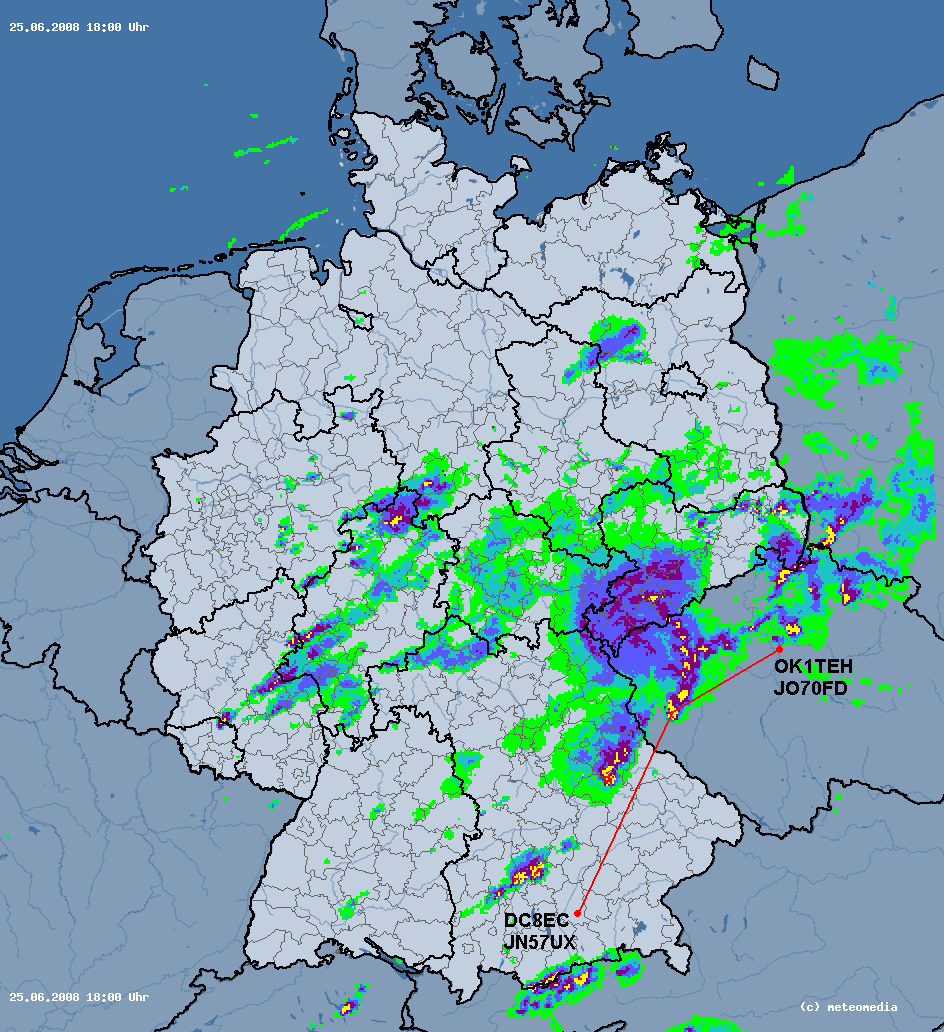

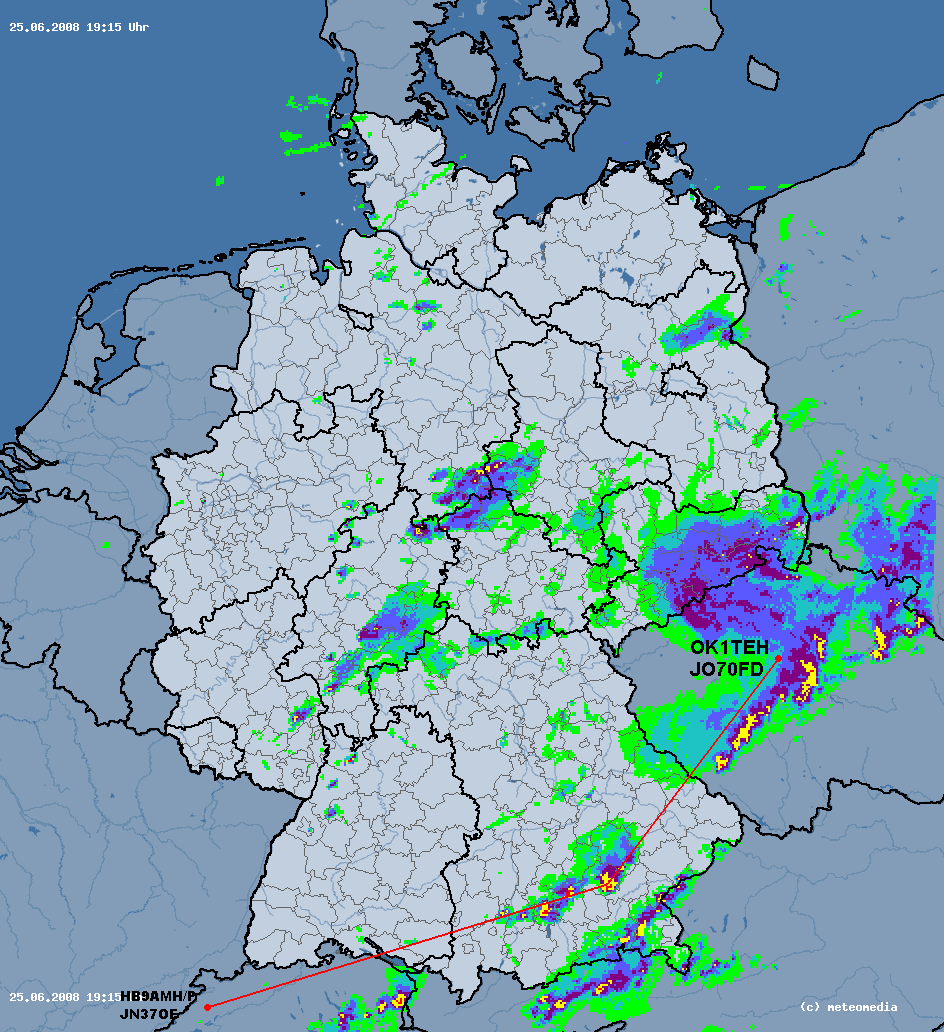

Super RS on 25th June 2008
|

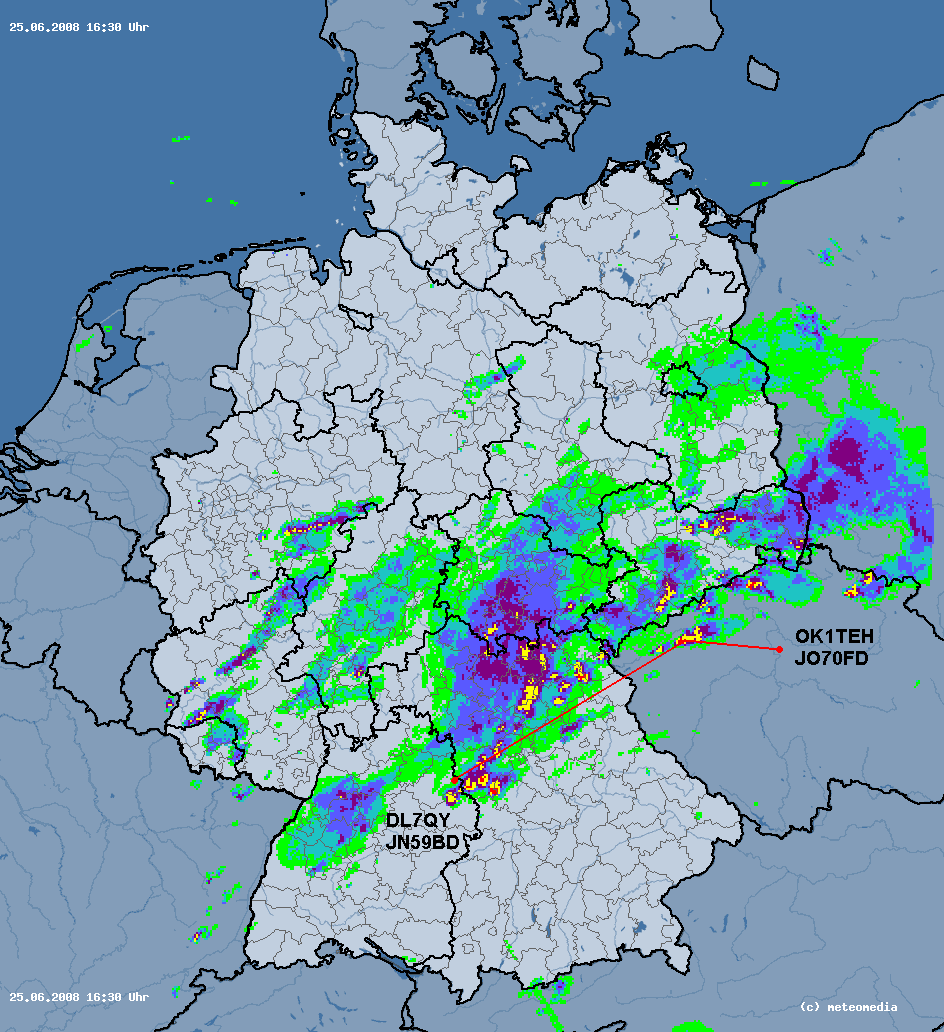

25.06.08 14:35 10368110 DL7QY 57S 52S JN59BD 332 QTF 280/060 SCP JO60OG 25.06.08 15:13 10368120 DL7YC 59S 51S JO62PK 268 QTF 280/ 25.06.08 15:32 10368100 DL7YC 59S+20 59S SSB JO62PK 268 QTF 280/ 25.06.08 15:41 10368095 DG9NCL 57S 51S JO50VH 191 QTF 270/ 25.06.08 15:46 10368100 DK5AI 59S 59S JO51GO 320 QTF 270/ 25.06.08 15:53 10368100 OK2PKD 59S 59S JN99BK 276 QTF 270/275 25.06.08 16:01 10368090 DC8EC 59S 53S JN57UX 314 QTF 243/ 25.06.08 16:10 10368085 DL1ATI 59S 59S JO50QU 233 QTF 260/ 25.06.08 16:18 10368105 DM2AFN 59S+40 59S SSB JO61WB 110 QTF 270/ 25.06.08 16:20 10368100 OM1GX 59S 59S JN88LK 263 QTF 280/ 25.06.08 17:10 10368130 HB9AMH 55S hrd :-( JN37QD QTF 190/ 25.06.08 17:52 10368130 I4XCC 59S 57S JN63GV 710 QTF 180/ + MP3 25.06.08 18:01 10368150 IW4CJM 59S 57S SSB JN63HV 709 QTF 180/ + MP3 25.06.08 18:11 10368100 I4XCC 59S 57S SSB JN63GV 710 QTF 180/ + MP3 25.06.08 18:40 10368130 I4XCC 53S 53S JN63GV 710 QTF 180/ 25.06.08 19:06 10368115 9A2SB 59S 57S JN95GM 598 QTF 155/ + MP3 25.06.08 19:40 10368110 S51ZO 59S 59S JN86DR 403 QTF 151/ + MP3 25.06.08 19:45 10368105 9A2SB 59S fb 59S+ JN95GM 598 SCP JN88CB + MP3 last report at 2032 25.06.08 21:17 10368108 OM3CLS 56S 55S JN99FC 311 QTF 140/ + MP3

CHMU radar map
2nd picture: Is it Tromb
or light reflection from plastic surface?? |
26.06.08 17:34 10368090 I4XCC 59S 57S JN63GV 710 QTF 193/ + MP3 26.06.08 17:45 10368143 IW4CJM 59S 55S SSB JN63HV 709 QTF 193/ 26.06.08 18:09 10368100 DL9GK 59S 55S JO50TI 204 SCP JN67 26.06.08 18:14 10368130 S51ZO 53S 55S JN86DR 403 SCP JN77 26.06.08 18:44 10368105 9A2SB 57S 55S JN95GM 598 QTF 180/ + MP3 26.06.08 19:03 10368100 OE8PGQ 59S 599 JN76AO 395 QTF 180/ + MP3 60cm Dish 5w #33 26.06.08 19:36 10368095 I4XCC 59S 59S SSB JN63GV 710 QTF 180/ + MP3 26.06.08 20:01 10368110 9A2SB 59S 55S SSB JN95GM 598 QTF 170/ + MP3
02.07.08 15:28 10368100 IW4CJM 55S 53S JN63HV 709 SCP JN67RQ
02.07.08 15:37 10368100 I4XCC 55S 53S JN63GV 710 SCP JN67QQ + MP3
02.07.08 18:19 10368090 HB9AMH/p 55S 41S JN37OE 627 QTF 240/ + MP3 120cm DISH + 12W new DXCC!
07.07.08 13:04 10368100 9A2SB 55S 55S JN95GM 598 JN87DU + MP3
07.07.08 13:09 10368100 9A2SB 59S 59S JN95GM 598 JN87DU + MP3
07.07.08 13:20 10368100 9A2SB 59S 59S SSB JN95GM 598 JN87DU + MP3
|

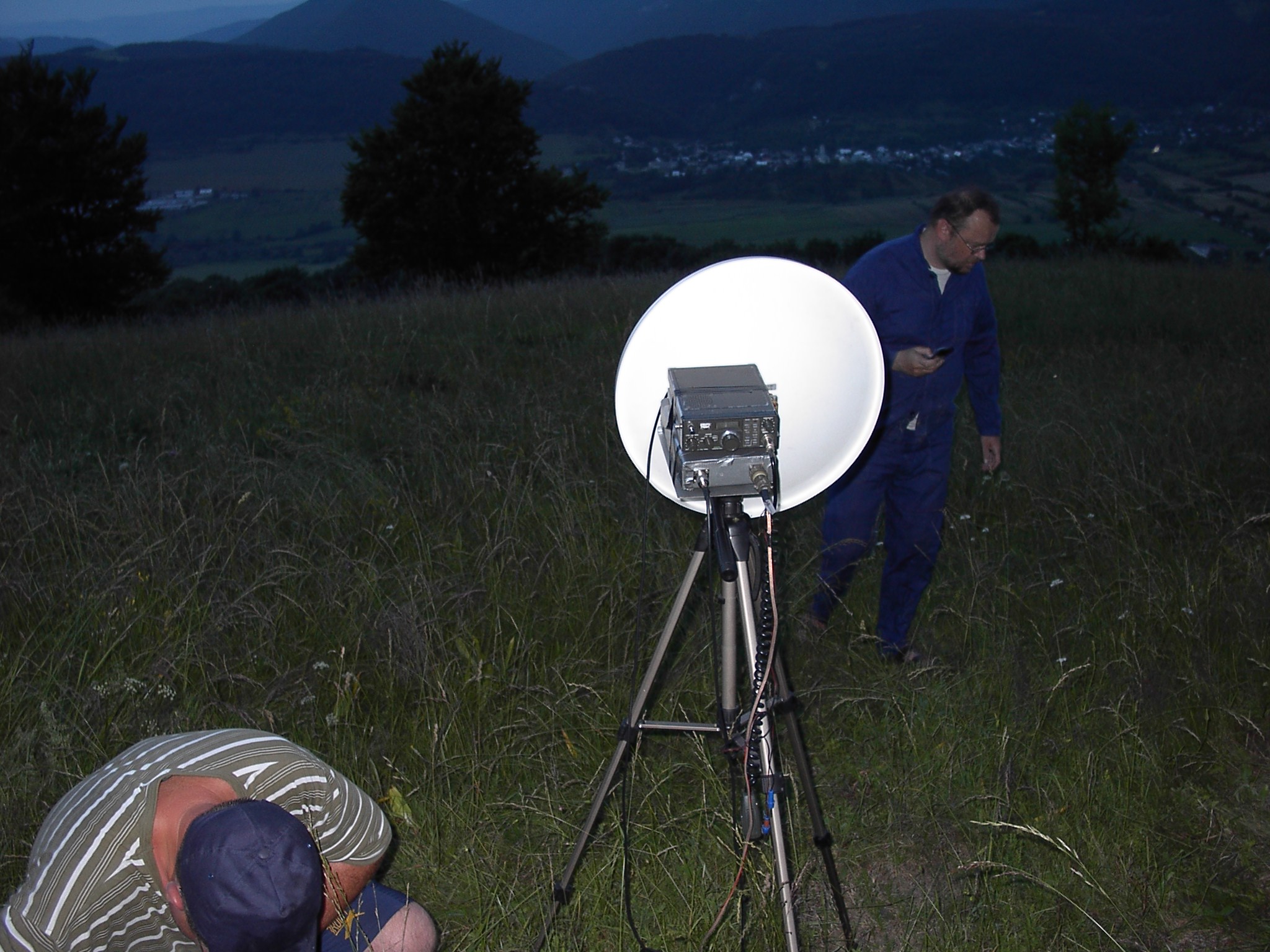

Small 3cm RS expedition into JN98FW - 12th July 2008
|
.jpg)
.jpg)
.jpg)
12.07.08 19.24 10368110 SP6GWB 59S 55S JO80HK 213 as OM/OK1TEH/P JN98FW with OM3CLS + OK1VPZ
12.07.08 19.55 10368 SP9SOO 59S 57S SSB JN99OV 120
12.07.08 19.58 10368 OK2ER 59S 59S JN99BS 96 The End of OM expedition
25.07.08 15:23 10368110 OM3CLS 55S 57S JN99FC 311 QTF 090/ + MP3
25.07.08 16:02 10368120 OK2ER 59S 58S JN99BS 267 QTF 090/265
25.07.08 16:08 10368100 DM2AFN 59S 59S JO61WB 110 QTF 040/120
26.07.08 14:12 10368110 DL3JAN 57S 55S JO61WB 110 QTF 250/168
27.07.08 16:24 10368090 I4XCC 57S 52S JN63GV 710 QTF 185/ + MP3(10min after QSO)
29.07.08 15:33 10368130 HB9AMH/P 57S 52S SSB JN37OE 627 QTF 240/ + MP3
29.07.08 16:37 10368100 I6XCK 51S NC 51S JN63QN SCP JN77BE + MP3
29.07.08 16:49 10368080 I4XCC 52S 51S JN63GV 710 SCP JN77BE
29.07.08 17:00 10368100 OE8PGQ 59S HRD JN76AO
29.07.08 17:32 10368100 DL9GK 57S 52S JO50TI 204 SCP JN58XK
29.07.08 18:00 10368140 DL6NAA 55S 31S JO50VF 191 SCP JN68BL
30.07.08 15:38 10368120 OE3LI 59S+ 59S JN88EC 267 QTF 150/347 + MP3
30.07.08 15:49 10368103 DM2AFN 59S+20 59S JO61WB 110 SCP JN79EN
30.07.08 15:58 10368110 9A2SB 53S 51S JN95GM 589 SCP JN88CP
30.07.08 16:02 10368110 HA1YA 55S 55S JN87GF 359 SCP JN88ID NEW DXCC! #34
30.07.08 16:08 10368110 9A2SB 59S 59S JN95GM 589 SCP JN88ID + MP3
30.07.08 16:10 10368110 9A1CAL 57S 57S JN86DM 425 SCP JN88IC + MP3
30.07.08 17:31 10368105 DL6NAA 59S 59S JO50VI 192 SCP JN68VP

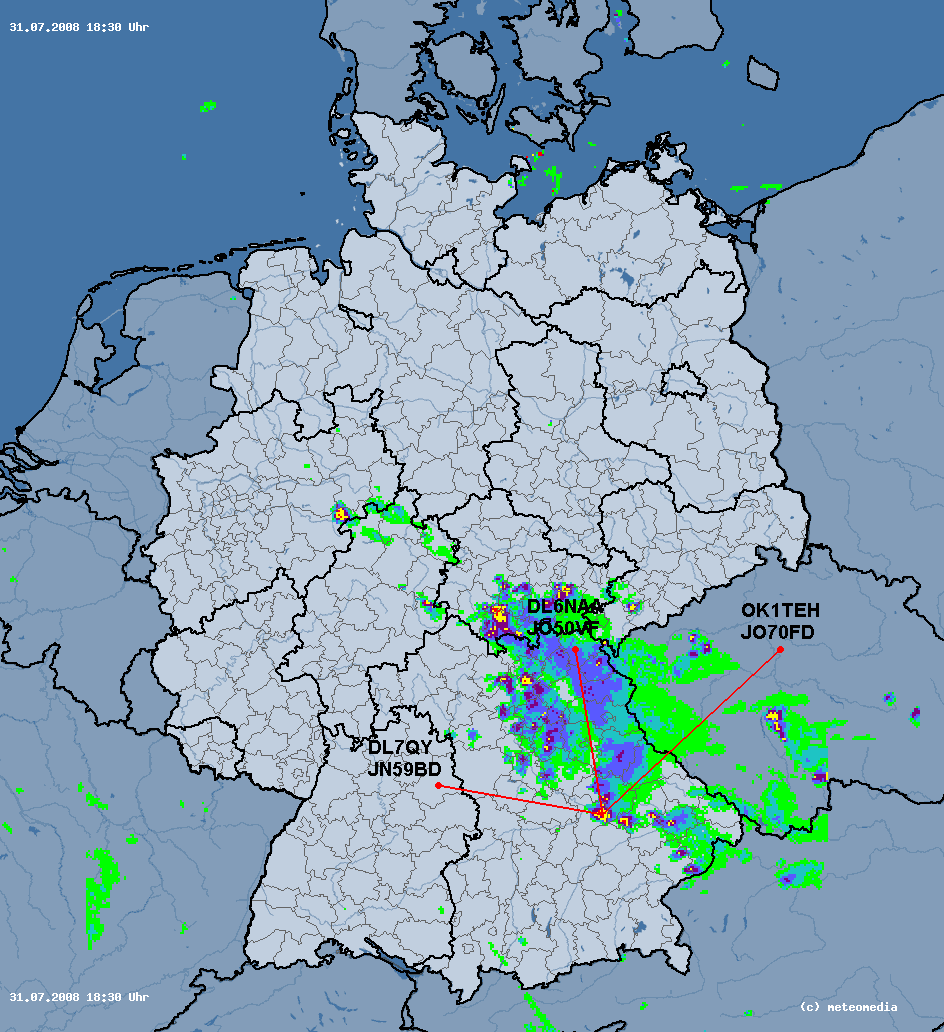

31.07.08 13:07 10368100 DL7QY 55S 52S JN59BD 332 SCP JN78CS QTF 200/96
31.07.08 14:25 10368100 DL6NAA 59S 57S JO50VF 192 SCP JN68QU QTF 200/
31.07.08 16:34 10368100 DL7QY 59S 57S SSB JN59BD 332 SCP JN68 + MP3
02.08.08 12:59 10368095 OK2ER 59S 59S JN99BS 267 SCP JN99 QTF 90
07.08.08 16:39 10368100 DB6NT 59S 55S SSB JO50VI 192 SCP JN58VX
07.08.08 16:43 10368098 OK1AIY/P 59 59 SSB JO70SQ 99
07.08.08 17:01 10368100 DL3MBG 57S 55S JN67JX 270 SCP JN58WX
07.08.08 17:53 10368125 I4XCC 52S 52S JN63GV 710 SCP JN77AO + MP3
11.08.08 17:08 10368100 DL7QY 55-7S 55S JN59BD 332 SCP JN58LX
15.08.08 15:08 10368110 OM3CLS 59S 59S JN99FC 311 SCP JN88QN
15.08.08 15:03 10368100 HA8MV/P 55S 53S KN06HT 587 SCP JN88QN + MP3 #35
15.08.08 15:16 10368100 HA8MV/P 57S 55S KN06HT 587 SCP JN88QN
15.08.08 15:26 10368100 HA8MV/B 57S 55S SSB KN06HT 587 SCP JN88QN
More at http://www.novinky.cz/clanek/147408-ve-stredni-evrope-zabijely-bourky-deset-mrtvych.html
22.08.08 18:04 10368102 9A1CAL 52S 55S JN86DM 425 SCP JN68TG
22.08.08 18:24 10368111 9A1CAL 59S 58S SSB JN86DM 425 SCP JN68WI
21.09.08 08:58 10368095 OK1VAM 59 001 59002 JN79IX 26
21.09.08 09:34 10368110 OK1DSO 59 002 59002 JO70DC 13
21.09.08 09:44 10368106 OK1FBX 59 003 59007 JO60WD 42
11.10.08 12:14 10368110 SP6GWB 59 59 JO80JG 167
16.11.08 08:10 10368095 OK2QI 59 001 59001 JO80OC 197
16.11.08 08:22 10368102 OK1FBX 59 002 59001 JO60WD 42
04.12.08 17:49 10368093 OK1FBX 579 599 JN69XX 40 #36 Krusna hora 609m asl + video
21.12.08 08:33 10368100 OK2QI 59 001 59001 JO80OC 197
21.12.08 08:54 10368100 OK1FBX 59 002 59001 JO60WD 42
===============================================================
15.02.09 08:48 10368100 OK1MTZ 59 001 59001 JO70DB 15
15.02.09 08:55 10368100 OK2QI 59 002 59001 JO80OC 197 nil from OK2PBR
15.02.09 09:41 10368100 OK1FBX 59 003 55003 JO60WD 42
15.02.09 09:29 10368100 OK1VAM 59 004 53002 JN79IX 26
07.03.09 14:01 10368 OL4K 59 001 59001 JO70TQ 103 1st Subregional Contest 2009
07.03.09 14:52 10368 OK1IA 59 002 59005 JO70UP 105
07.03.09 14:56 10368 OK1VAM/P 59 003 59011 JO60LJ 111
07.03.09 14:59 10368 OK2QI 59 004 59003 JO80OC 197
07.03.09 15:08 10368 OK5Z 599005 599004 JN89AK 139
07.03.09 15:12 10368 OK1VHF 59 006 59006 JO70EB 12
07.03.09 15:54 10368 DM7A 519007 529006 JO60OM 99 QTF 230
07.03.09 16:00 10368 OK1IEI 59 008 59005 JO70EC 8
07.03.09 17:35 10368 OK8YD 59 009 59007 JO70EB 12
07.03.09 19:18 10368 OK1AIY/P 59 010 59007 JO70SQ 98
07.03.09 21:01 10368 OK1DSO 59 011 59005 JO70DC 13
07.03.09 21:48 10368 OK1KJB 59 012 59011 JN79IO 63
08.03.09 00:01 10368 OK1VEI 59 013 59001 JO70ED 6
08.03.09 06:38 10368100 OE5VRL/5 529014 519010 JN78DK 191
08.03.09 13:06 10368 OK1VM 59 015 59011 JO60VR 81 QTF 120
15.03.09 08:59 10368100 OK2DL 579001 559001 JN79WL 126 1st QSO from new QTH 60cm DISH
15.03.09 09:59 10368101 OK1AIY/P 59 002 59001 JO70SQ 98
12.04.09 08:21 10368 OK1AIY/P 59 001 59001 JO70SQ 98
12.04.09 09:10 10368 OK1VM 59 002 59001 JO60VR 81
12.04.09 09:13 10368 OK7RA 59 003 59004 JO60LJ 111
12.04.09 10:57 10368 OK2DL 599004 559002 JN79WL 126
12.04.09 11:27 10368 OK1VHF 59 005 59003 JO70EB 12
12.04.09 12:02 10368 OK1IEI 59 006 59001 JO70EC 8
19.04.09 08:56 10368 OK1VAM 59 001 59004 JN79IX 26
19.04.09 08:56 10368 OK1JKT 59 002 59002 JO60RN 85
19.04.09 09:34 10368 OK1MTZ 59 003 59001 JO70DB 16
19.04.09 10:55 10368 OK1VM 59 004 59004 JO60VR 81
19.04.09 11:06 10368 OK1FBX 59 005 51006 JO60WD 42
29.04.09 16:39 10368105 DL6NAA 59S+ 59S JO50VF 191 SCP JO60TG QTF 280/90
09.05.09 16:58 10368113 DK5YA 53S 52S JN49NX 382 SCP JN59NK #37
09.05.09 17:50 10368100 DC8EC 55S 55s JN57UX 314 SCP JN69GB SSB
09.05.09 18:09 10368100 DL7QY 55S 52S JN59BD 332 SCP JN69PW
09.05.09 19:04 10368100 OE5VRL/5 59S+ 59S JN78DK 190 SCP JO70DI 330/356 SCP
09.05.09 19:16 10368105 DG0VO 59S 55S JO61VB 112 SCP JO70DF Tom
27.05.09 16:36 10368104 DL6NAA 59S 59S JO50VF 191 QTF 200/137
27.05.09 16:48 10368105 DL3MBG 59S 59S JN67JX 270 QTF 240/
27.05.09 16:50 10368113 DK4KW 59S 59S JO60EM 154 QTF 240/120
27.05.09 16:56 10368119 OK2DL 59S 59S JN79WL 126 QTF 250/
06.06.09 15:11 10368 OK2KJT 59S001 599010 JN99AJ 271 June SHF contest 2009
06.06.09 15:14 10368 OK5Z 59S002 599016 JN89AK 139
06.06.09 15:16 10368 OL4A 59S003 59S016 JO60RN 85
06.06.09 15:48 10368 OK2TT 599004 599018 JO80IA 162
06.06.09 15:50 10368 DL3JAN 59S005 59S021 JO61VB 113
06.06.09 15:52 10368 OM3W 59S006 59S024 JN99CH 286
06.06.09 15:57 10368 OM5M 59S007 599019 JN88UU 276
06.06.09 15:59 10368 OK1KKL 599008 599008 JO70PO 79
06.06.09 16:05 10368 OK1IA 59 009 59009 JO70UP 105
06.06.09 16:14 10368 S51ZO 59S010 59S012 JN86DR 404
06.06.09 16:41 10368 SP6GWB 59S011 59S030 JO80JG 167
06.06.09 16:44 10368 OK1DSO 59 012 59001 JO70DC 13
06.06.09 16:49 10368 OK2PWY 59S013 59S030 JO80HB 155
06.06.09 16:55 10368 OL7Q 59S014 59S028 JN99FN 295
06.06.09 17:04 10368 OK1VAM 59 015 59009 JN79IX 26
06.06.09 17:21 10368 S50C 55S016 55S034 JN76JG 432
06.06.09 17:41 10368 S59P 55S017 55S015 JN86AO 411
06.06.09 17:43 10368 HG7F 55S018 59S013 JN97KR 420 #38
06.06.09 17:46 10368 OK2M 59S019 59S029 JN69UN 85
06.06.09 17:49 10368 OE5VRL/5 59S020 59S035 JN78DK 191
06.06.09 18:19 10368 OK7RA/P 59S021 55S021 JO60RB 72
06.06.09 18:23 10368 OK1VHF 59 022 59033 JO70EB 12
06.06.09 18:57 10368 OL4K 59 023 59008 JO70TQ 103
06.06.09 19:02 10368 OK1KJB 59 024 59040 JN79IO 63
06.06.09 19:15 10368 DM7A 59 025 59022 JO60LK 112
06.06.09 19:34 10368 OK1KLL 59 026 59003 JN79IW 30
06.06.09 20:42 10368 OK2QI 59 027 59021 JO80OC 197
06.06.09 22:48 10368 OK1AIY/P 59 028 59008 JO70RQ 94
07.06.09 06:02 10368 OK1KPA 559029 599044 JN79US 99
07.06.09 08:30 10368 OK1IEI 59 030 59008 JO70EC 8
07.06.09 11:09 10368 DL6NAA 59S031 599016 JO50VF 191
07.06.09 11:15 10368 DL0GTH 59S032 52S045 JO50JP 266
07.06.09 11:26 10368 DB6NT 59S033 59035 JO50VJ 192
07.06.09 11:31 10368 DL6NCI 59S034 55S033 JO50VI 192
07.06.09 11:57 10368 OE3WOG/P 59 035 57022 JN67RS 275
07.06.09 12:37 10368 DK9MN 57S036 58S009 JN58TC 307
07.06.09 12:50 10368 DF0MTL 55S037 55S031 JO60OM 99
07.06.09 13:27 10368 OL9W 55S038 55S046 JN99CL 280
21.06.09 10:26 10368 OK1VAM 59 001 59002 JN79IX 26
21.06.09 13:45 10368 OE5VRL/5 599002 559003 JN78DK 191
25.06.09 15:35 10368100 OK2DL 59S 59S JN79WL 126 110/330
25.06.09 15:39 10368100 SP3JBI 55S 55S JO91BR 312 scp jo70mg
26.06.09 17:29 10368100 DL7QY 55S 53S JN59BD 332
26.06.09 18:10 10368105 DK2GR 57S 55S JN59IE 307 SSB 70cm dish 7w
30.06.09 15:29 10368106 OM3CLS 55S 59S JN99FC 311 SCP JN79QS
14.07.09 15:19 10368103 OK2DL 59S 59S JN79WL 126 scp jo80da
14.07.09 15:32 10368088 OK2BFH 57S 57S JN99JQ 316 QTF 60/306
14.07.09 15:54 10368100 OM3CLS 59S 59 JN99FC 311 scp jn89dv
14.07.09 16:02 10368140 DL6NCI 59S 57S JO50VI 192 QTF 100/ jn89cu
14.07.09 16:37 10368100 SP9SOO 59S 59S JN99OV 342 SSB
14.07.09 16:44 10368100 OK2POI 55S 59S JN99BL 274
14.07.09 16:55 10368100 OK2PMU 59S 59S JN99AL 268 SSB
14.07.09 16:57 10368100 OK2PMU 59S 59S JN99AL 268 FM
14.07.09 17:14 10368109 OM3CLS 59S 59S JN99FC 311
14.07.09 17:48 10368100 OE3GWC 59S 59S JN87CU 285
15.07.09 15:00 10368090 9A2SB 55S 59S JN95GM 598 scp jn77jp 15.07.09 15:50 10368110 OK2PMU 55S 55S JN99AJ 271 scp jn89 15.07.09 15:54 13068099 DL6NAA 59S 59S JO50VF 191 15.07.09 16:12 10368190 OM3CLS 59S 59S JN99FC 311 15.07.09 16:18 10368105 OK2PMU 59S 59S JN99AJ 271 15.07.09 16:19 10368200 OK2PMU 55S 55S JN99AJ 271 scp jn89 15.07.09 16:30 10368114 OE3GWC 59S 59S JN87CU 285 scp jn77 15.07.09 18:16 10368162 I4XCC 52S 55S JN63GV 710 scp jn77oc 15.07.09 18:21 10368080 IW4CJM 59S 59S JN63HV 709 scp jn77ic 15.07.09 18:37 10368105 9A2SB 59S 59S JN95GM 598 scp jn77jb 22.07.09 17:35 10368104 OM3CLS 55S 59S JN99FC 311 22.07.09 18:41 10368101 SP9COO 59S 59S JO90GA 293 22.07.09 19:45 10368120 OK2POI 53S 55S JN99BL 274 jn89fd 22.07.09 19:58 10368113 OM3CLS 59S 59S JN99FC 311 ssb 22.07.09 20:00 10368200 OM3CLS 52S 59S JN99FC 311 fm 22.07.09 20:35 10368114 OK2PMU 59S 55S JN99AJ 271 SCP JN89IB
23.07.09 14:51 10368112 DL7QY 55S 55S JN59BD 332 23.07.09 15:00 10368100 DB6NT 59S 55S JO50VJ 192 23.07.09 16:07 10368080 DK4KW 59S 55S JO60EM 154 23.07.09 16:11 10368109 OE3GWC 59S 59S JN87CU 285 SSB 23.07.09 16:22 10368100 DM2AFN 59S 59S JO61WB 110 FRITZ 23.07.09 16:24 10368100 OK2VSO 59S 59S JN99AJ 271 23.07.09 16:32 10368095 OK2POI 59S 59S JN99AJ 271 o 3dB slabsi pri Vpol->septum 23.07.09 17:21 10368100 9A2SB 55S 59S JN95GM 598 23.07.09 17:29 10368150 9A5SG 59S 59S JN95IM 605 Eq from W/ exp.10W...1,5m dish 23.07.09 18:06 10368120 I4XCC 52S 52S JN63GV 710 23.07.09 18:29 10368100 OE5VRL/5 59S 59S JN78DK 190 QTF 77
30.07.09 16:50 10368155 9A5SG 57S 55S JN95IM 605 scp jn77pc later 76PX 02.08.09 18:20 10368093 9A1CAL 52S 55S JN86DM 425 02.08.09 18:25 10368120 OE3GWC 57S 59S JN87CU 285 02.08.09 18:32 10368090 9A2SB 55S 55S JN95GM 598 scp jn78vk 02.08.09 18:47 10368098 S51ZO 59S 59S JN86DR 403 scp jn78wl 02.08.09 19:05 10368110 OK1JKT/P 59S 59S JO60RN 85 QTF 240/142 02.08.09 19:20 10368090 OM3CLS 51S 52S JN99FC 311
17.08.09 15:30 10368100 9A5SG 59S 59S JN95IM 605 scp jn77sh
17.08.09 16:15 10368100 DM2AFN 59S 59S JO61WB 110 QTF 260/215 Dopl +3kHz
17.08.09 16:50 10368115 DH5FS 59S 55S JO61UB 115 SSB scp jn69gm
17.08.09 18:34 10368093 DK5AI 59S 59S JO51GO 320 QTF 300
17.08.09 18:50 10368125 DF1OI/P 55S 51S JO42TF 410 #39 scp jo60vg 16w, 0.6m
21.08.09 08:18 10368105 DL7QY 55S 55S JN59BD 332 scp jn59ri
21.08.09 09:20 10368105 OE5VRL/5 59S 55S JN78DK 190 SCP QTF 258/311 SCP JN59XT
21.08.09 16:14 10368150 IZ4BEH 51S 55S JN54WL 660 scp jn77bg new 85cm offset dish and 3,5W look
21.08.09 19:00 10368106 9A2SB 57S 55S JN95GM 598scp jn77ph
25.08.09 20:31 10368100 DL7QY 55S 55S JN59BD 332
===============================================================
21.02.10 08:48 10368100 OK1AIY/P 59 59001 JO70SQ 98
21.02.10 10:09 10368097 OK2QI 59 59002 JO80OC 197
20.03.10 23:16 10368100 SP6ASD 52S 55S JO81LD 210 #40 QTF 57/238 scp jo70qm
