Srovnání výsledku stanic OK1KIM a OK2KKW v pásmu 432 MHz v UHF Contestu 2001

Comparison between OK1KIM and OK2KKW 432 MHz claimed results in UHF Contest 2001

pripravil / prepared by: S53MM

Contest       : IARU UHF
Date          : 06./07.10.2001

Call          : OK1KIM                   Call          : OK2KKW
UL            : JO60RN                   UL            : JO60JJ
Frequency     : 432 MHz                  Frequency     : 432 MHz
Category      : Multi                    Category      : Multi
Location      : Lesna,Krusne hory        Location      : Spaleniste,Krusne hory
--------------------------------------   --------------------------------------
QSO's         : 464                      QSO's         : 427
Valid QSO's   : 464                      Valid QSO's   : 426
Sum of dist.  : 143208 km                Sum of dist.  : 130865 km
QRB/QSO       : 309 km/QSO               QRB/QSO       : 307 km/QSO
ODX           : YU1GT in KN04LP 865 km   ODX           : YU1EV in KN04CN 855 km
--------------------------------------   --------------------------------------
Ant           : 4x38 el  M square        Ant           : single K1FO 33 el.Yagi
PWR           : 750 W                    PWR           : 500 W
--------------------------------------   ---------------------------------------

     QSOs/QRB:        QSOs/DXCC:             QSOs/QRB:          QSOs/DXCC:
    < 100 km :  62       S5  13               < 100 km :  48        S5   10
100 - 200 km :  86       I   1            100 - 200 km :  87        I    7
200 - 300 km :  81       OK  97           200 - 300 km :  86        OK   81
300 - 400 km :  86       9A  8            300 - 400 km :  80        9A   9
400 - 500 km :  81       HG  18           400 - 500 km :  60        HG   16
500 - 600 km :  44       OM  18           500 - 600 km :  38        OM   18
600 - 700 km :  18       OE  17           600 - 700 km :  20        OE   12
700 - 800 km :  3        DL  197          700 - 800 km :  3         DL   233
    > 800 km :  3        SP  18               > 800 km :  4         SP   10
                         YU  3                                      YU   2
                         F   1                                      HB   1
                         G   1                                      F    2
                         ON  7                                      G    2
                         OZ  3                                      ON   5
                         PA  18                                     OZ   4
                         SM  1                                      PA   10
                                                                    SM   1

Top ten per QRB:                          Top ten per QRB:
YU1GT         KN04    865 km              YU1EV         KN04    855
YU1EV         KN04    838                 YT1S          JN94    820
YT1S          JN94    833                 M1CRO/p       JO01    819
I4LCK/4       JN54    732                 G8P           JO01    807
ON1DO         JO11    717                 IK1YWB/6      JN63    733
PE1EWR        JO11    701                 I4LCK/4       JN54    705
ON1BV         JO10    699                 IK1XPD        JN35    705
PE1PTQ        JO11    684                 9A7D          JN95    691
9A7D          JN95    679                 9A2SB         JN95    691
PI4ZLD        JO11    679                 I2FHW         JN44    681
Worked UL fields - 69   (OK1KIM)
               JO45 JO55 JO65
               JO44 JO54
          JO33 JO43 JO53 JO63 JO73 JO83
     JO22 JO32 JO42 JO52 JO62 JO72 JO82 JO92
JO11 JO21 JO31 JO41 JO51 JO61 JO71 JO81
JO10 JO20 JO30 JO40 JO50<JO60>JO70 JO80 JO90
     JN29 JN39 JN49 JN59 JN69 JN79 JN89 JN99 KN09
          JN38 JN48 JN58 JN68 JN78 JN88 JN98 KN08
               JN47 JN57 JN67 JN77 JN87 JN97 KN07
                              JN76 JN86 JN96
                              JN75 JN85 JN95
                    JN54                JN94 KN04

Worked UL fields - 71  (OK2KKW)
                    JO45 JO55 JO65
                    JO44 JO54
               JO33 JO43 JO53 JO63 JO73
          JO22 JO32 JO42 JO52 JO62 JO72
JO01 JO11 JO21 JO31 JO41 JO51 JO61 JO71
     JO10 JO20 JO30 JO40 JO50<JO60>JO70 JO80 JO90
          JN29 JN39 JN49 JN59 JN69 JN79 JN89 JN99 KN09
          JN28      JN48 JN58 JN68 JN78 JN88 JN98 KN08
               JN37 JN47 JN57 JN67 JN77 JN87 JN97
                                   JN76 JN86 JN96
               JN35      JN55      JN75 JN85 JN95
                    JN44 JN54 JN64           JN94 KN04
                              JN63

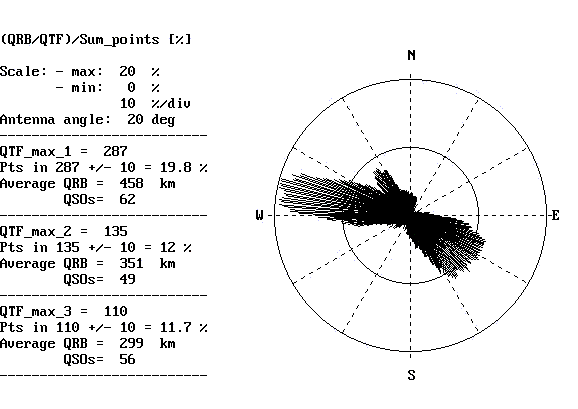

 Here are azimuth diagrams for OK1KIM:

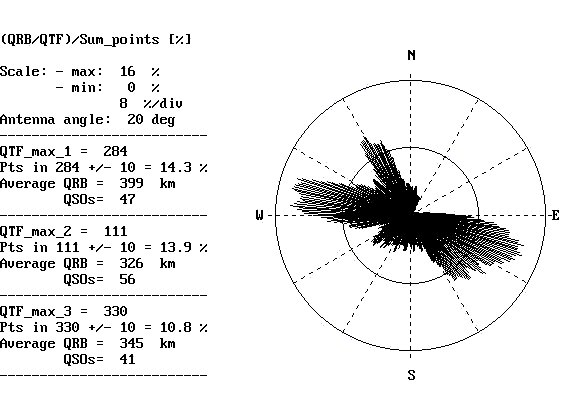

 And for OK2KKW :

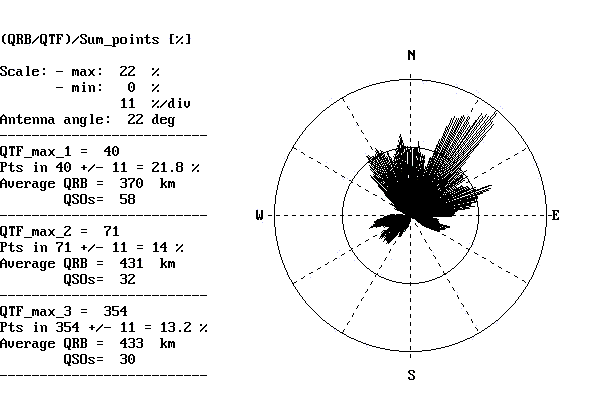

For comparison, S50C diagram is here:




I noticed, that there is big hole from JO60JJ  (OK2KKW) towards directions betwen 30 and 90 degrees. Some higher hill or no activity?
(OK2KKW Note: Fichtelberg and Klinovec forested hills, both 300 m higher in 6 to 9 km distance)
As you can see from JN76JG we have a hole betwen 270 and 300 degrees, because of Slovenian alps, which are for us 1000m higher
at distance of 20 km. To 120-180 degrees there is very little activity from T9, 9A also some mountain chain is there. Towards OK1 we
have 600m higher mountain in distance of 23 km,  so we must be quite happy with what we are doing. Best locations for OK1 and DL
from S5 are in very eastern part to avoide alps. JN86 square (S57O, S51ZO, S52EZ) , also JN76OL,OM,RL,PL are good. You worked
S53T, S51SL from there in this contest. But there is problem, if you are too east you don't work so many Italians.(20-30) From western
S5 they wkd over 220 I stn. We do around 100.
There sre some other options in statistic with VHFCTEST ( http://lea.hamradio.si/~s53ww/ )software.           73's GL       Matija S53MM
